Positive Crankcase Ventilation (PCV) System Components - Exploded View
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Early build engine with PCV heater element and electric heated PCV valve shown, late build engine without PCV heater element and standard PCV valve similar.

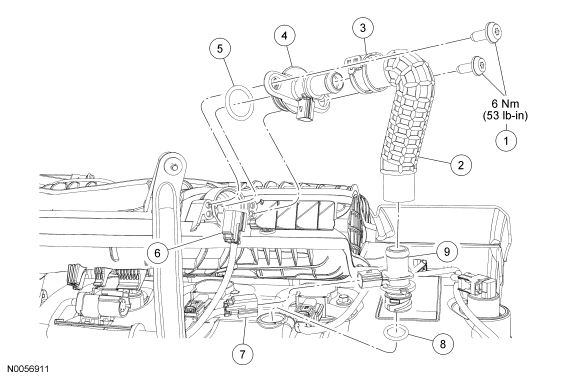

Fig 1: Exploded View Of Positive Crankcase Ventilation (PCV) System Components With Torque Specification
| Item | Part Number | Description |
|---|---|---|
| 1 | - | PCV heater element retainer screws (2 required) (early build only) |
| 2 | 6A664 | Crankcase ventilation tube |
| 3 | - | Crankcase ventilation tube spring clamp (part of 6K817) |
| 4 | 9F695 | PCV heater element (early build only) |
| 5 | 9J469 | PCV heater element O-ring (early build only) |
| 6 | 14A464 | PCV heater element electrical connector (early build only) |
| 7 | 14A464 | PCV valve electrical connector (early build only) |
| 8 | - | PCV valve O-ring (part of 6A666) |
| 9 | 6A666 | PCV valve |
- For additional information, refer to the procedures.
