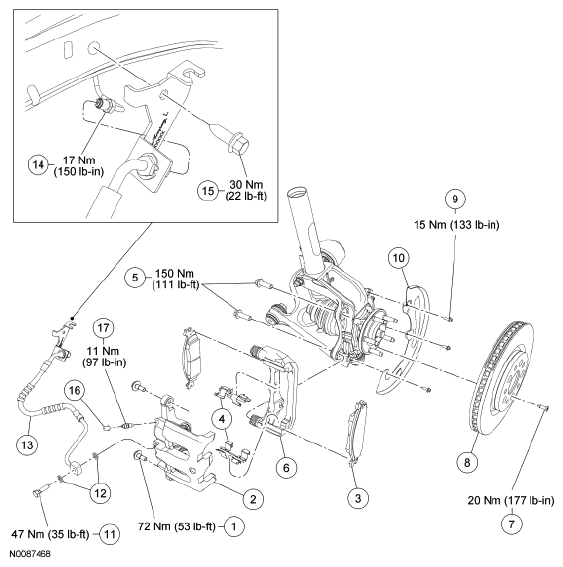

Disc Brake System - Exploded View
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake caliper guide pin bolt (2 required) (part of 2386 service kit) |
| 2 | 2B120 RH/ 2B121 LH | Brake caliper |
| 3 | - | Brake pad (part of 2001 service kit) |
| 4 | - | Spring clips (2 required) (part of 2001 service kit) |
| 5 | W713220 | Brake caliper anchor plate bolts (2 required) |
| 6 | - | Brake caliper anchor plate (part of 2B292 RH/2B293 LH service kits) |
| 7 | W7 08733 | Brake disc screw |
| 8 | 1125 | Brake disc |
| 9 | W712797 | Brake disc shield bolt (3 required) |
| 10 | 2K004 RH/ 2K005 LH | Brake disc shield |
| 11 | 385116 | Brake caliper flow bolt |
| 12 | 388949 | Copper washers (2 required) |
| 13 | 2078 RH/ 2B557 LH | Brake flexible hose |
| 14 | - | Brake tube fitting (part of 2C296) |
| 15 | W704911 | Brake flexible hose bracket bolt |
| 16 | - | Bleeder screw cap (part of 2208) |
| 17 | 2208 | Bleeder screw |
- For additional information, refer to the procedures in this article.
