Lower Intake Manifold: Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

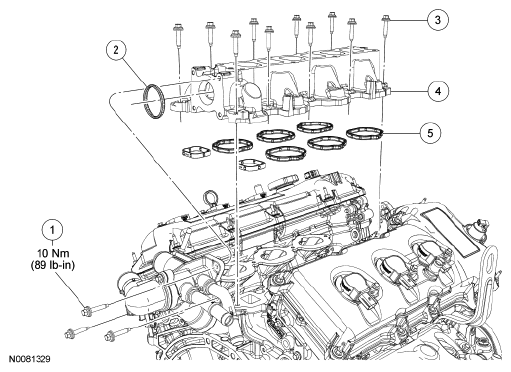

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W503279 | Thermostat housing-to-lower intake manifold bolt (3 required) |
| 2 | 8A571 | Thermostat housing gasket |
| 3 | W503279 | Lower intake manifold bolt (10 required) |
| 4 | 9K461 | Lower intake manifold |
| 5 | 9439 | Lower intake manifold gasket (8 required) |
