Driver Air Bag Module: Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

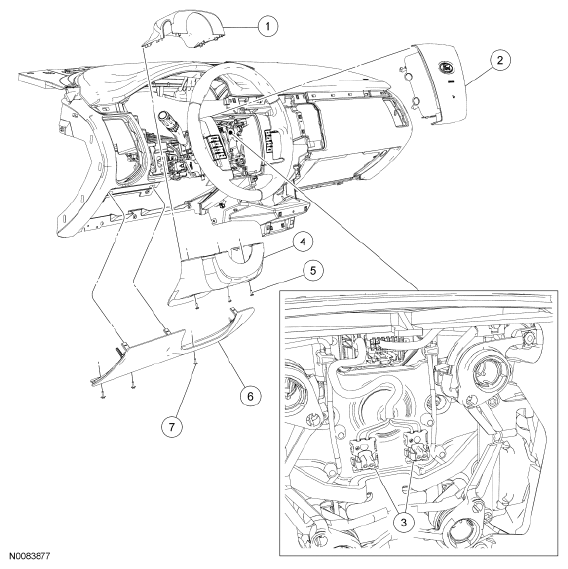

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | 043B13 | Driver air bag module |
| 3 | - | Driver air bag module electrical connectors (part of 14A664) |
| 4 | 3533 | Lower steering column shroud |
| 5 | N706731 | Lower steering column shroud screw (3 required) |
| 6 | 04459 | Steering column opening trim panel |
| 7 | N808453 | Steering column opening trim panel screw (3 required) |
