Passenger Air Bag Module: Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

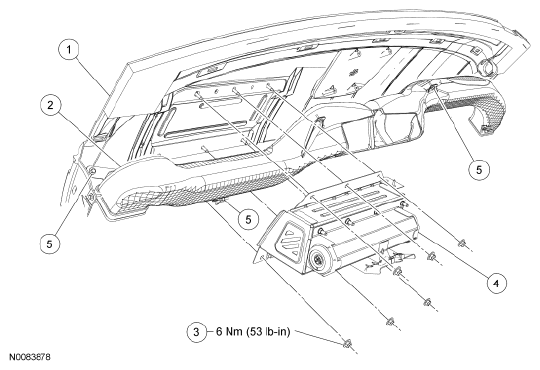

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
04320 |
Instrument panel upper section |
| 2 |
19B680 |
Air duct |
| 3 |
W701152 |
Passenger air bag module nut (6 required) |
| 4 |
044A74 |
Passenger air bag module |
| 5 |
W707607 |
Air duct screws (6 required) |
