Safety Canopy Module: Installation

WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before installing a Safety Canopy® or side air curtain module, inspect the roofline for any damage. If necessary, the sheet metal must be reworked to its original condition and structural integrity. Install new fasteners if damaged and remove foreign material. Failure to follow these instructions may result in the Safety Canopy® or side air curtain deploying incorrectly, which increases the risk of serious personal injury or death in a crash.
WARNING: Inspect a Safety Canopy® or side air curtain module before installation. If the module is damaged, the cover has separated or the Safety Canopy® or side air curtain material has been exposed, install a new module. Do not attempt to repair the module. Failure to follow these instructions may result in the Safety Canopy® or side air curtain deploying incorrectly, which increases the risk of serious personal injury or death in a crash.
WARNING: Never put any type of fastener or tie strap around any part of a Safety Canopy® module, side air curtain module or interior trim panel. This will prevent the Safety Canopy® or side air curtain module from deploying correctly. Failure to follow this instruction may increase the risk of serious personal injury or death in a crash.
WARNING: Do not obstruct or place objects in the deployment path of the Safety Canopy® or side air curtain module. Failure to follow this instruction may result in the Safety Canopy® or side air curtain module deploying incorrectly and increases the risk of serious personal injury or death in a crash.
  1. Position safety canopy module into the vehicle and insert the rear hook into the D-pillar sheet metal.
  2. Position the safety canopy module and insert the safety canopy module hook into the B-pillar sheet metal.
  3. Install the safety canopy module B-pillar bolt.
    • Tighten to 8 Nm (71 lb-in).
  4. Install the safety canopy module A-pillar bolt.
    • Tighten to 8 Nm (71 lb-in).
  5. Install the safety canopy module front tether and bolt.
    • Tighten to 8 Nm (71 lb-in).
  6. Attach the safety canopy module pin-type retainers to the A-pillar moulding.
  7. Install the safety canopy module middle bolt.
    • Tighten to 8 Nm (71 lb-in).
  8. Install the safety canopy module bolt C-pillar bolt(s).
    • RH safety canopy has 1 C-pillar bolt, LH safety canopy has 2 C-pillar bolts.
    • Tighten to 8 Nm (71 lb-in).
  9. Install the front and rear safety canopy module canister bolts.
    • Tighten to 8 Nm (71 lb-in).
  10. If equipped, connect the 2 rear moonroof drain hose clips to the safety canopy module canister.
    11. NOTE: Attach the rear tether as shown in illustration to prevent interference when installing the D-pillar trim panel.
    NOTE: Do not separate the rear tether from the routing clip. If the rear tether and routing clip become separated, use masking tape to reattach.
  11. Attach the rear tether and routing clip and install the tether anchor and bolt.
    • Tighten to 8 Nm (71 lb-in).

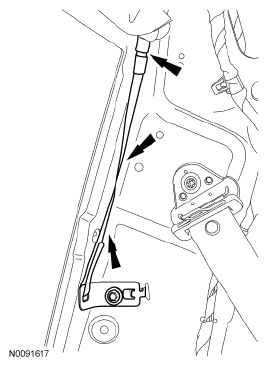

      Fig 1: Locating Rear Tether And Routing Clip
      G06063833Courtesy of FORD MOTOR CO.
  12. Connect the safety canopy module electrical connector.
  13. Install the headliner. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  14. Repower the SRS  . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
