Side Air Bag Module: Notes

WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

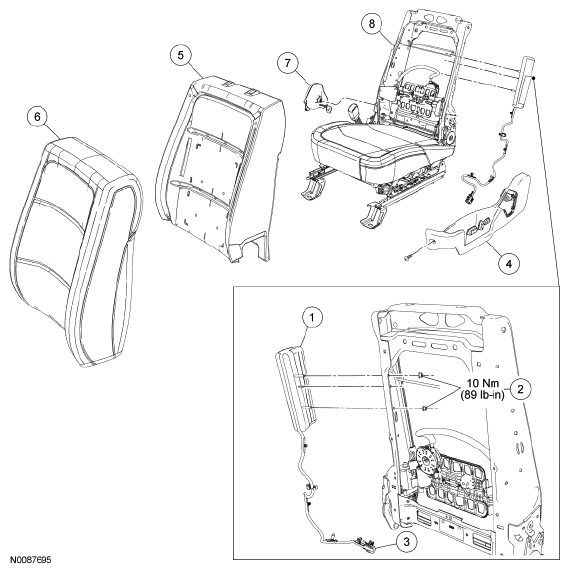

Fig 1: Side Air Bag Module Replacement Components With Torque Specifications
G06063834Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 611D11 Side air bag module
2 W520111 Side air bag module nuts (2 required)
3 - Side air bag module electrical connector (part of 611D11)
4 62187 Seat cushion side shield
5 64810 Seat backrest foam pad
6 64417 Seat backrest trim cover
7 62186 Inboard recliner cover
8 61019 Seat backrest frame
