Headlamp Assembly: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

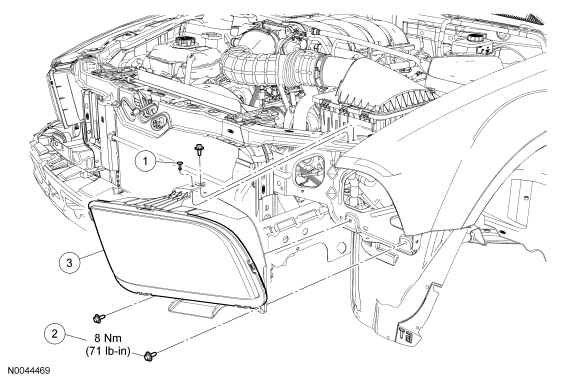

Fig 1: Exploded View Of Headlamp Assembly With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	58403D24	Push pin
2	W712277	Headlamp assembly bolts (3 required)
3	13008/13035	Headlamp assembly (RH/LH)
