Removal And Installation: Radiator: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

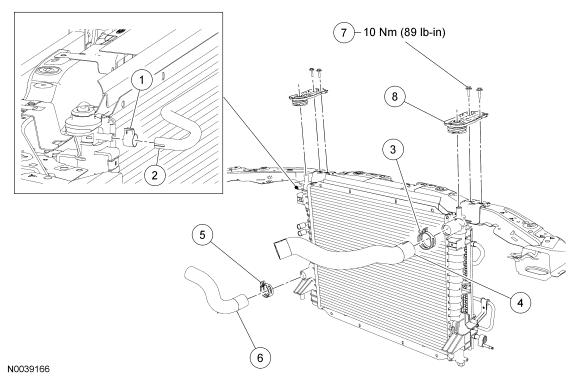

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W527383 |
Hose clamp |
| 2 |
8C633 |
Degas bottle-to-radiator hose |
| 3 |
8287 |
Hose clamp |
| 4 |
8260 |
Upper radiator hose |
| 5 |
8287 |
Hose clamp |
| 6 |
8286 |
Lower radiator hose |
| 7 |
W505424 |
Radiator support bracket bolt (4 required) |
| 8 |
8226 |
Radiator support bracket (2 required) |

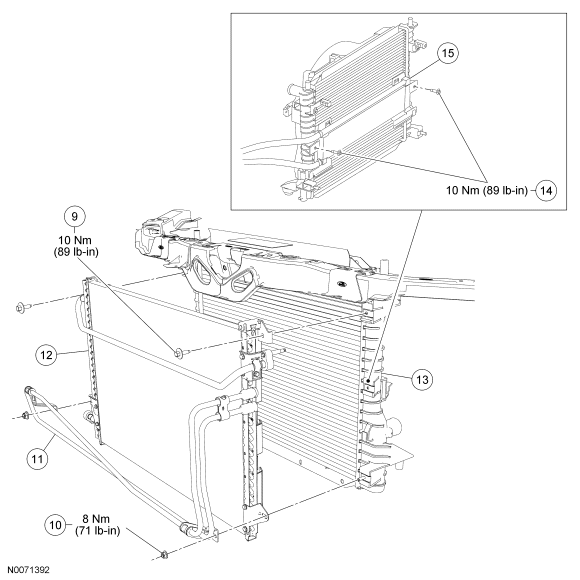

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 9 |
N606676 |
A/C condenser bolt (2 required) |
| 10 |
- |
A/C condenser retaining nut (2 required) |
| 11 |
3F780 |
Power steering tubes |
| 12 |
19710 |
A/C condenser |
| 13 |
8005 |
Radiator |
| 14 |
- |
Transmission cooler bolts (if equipped) |
| 15 |
7A095 |
Transmission cooler (if equipped) |
