Side Impact Sensor: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH similar.

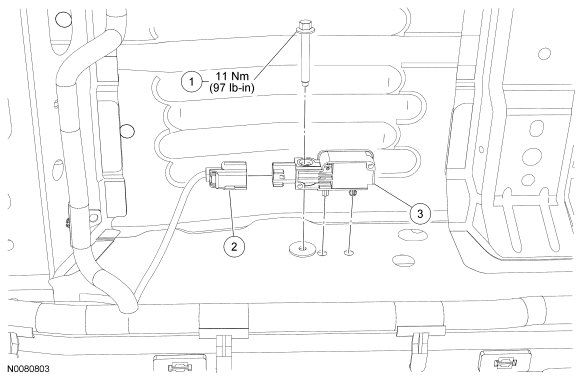

Fig 1: Exploded View Of Side Impact Sensor With Torque Specification
GF0046289Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Side impact sensor bolt (part of 14B345)
2 - Side impact sensor electrical connector (part of 14A005)
3 14B345 Side impact sensor
