Blower Motor: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

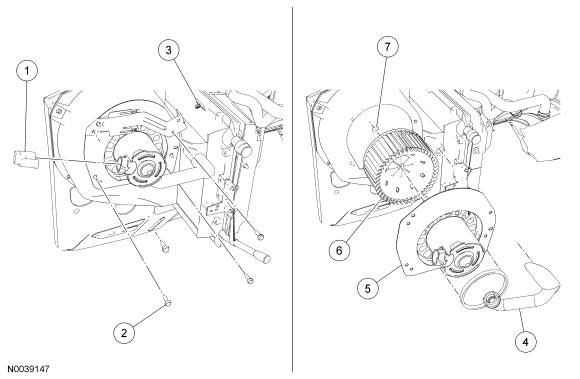

| Item |
Part Number |
Description |
| 1 |
14290 |
Blower motor electrical connector |
| 2 |
W701696 |
Blower motor screw (4 required) |
| 3 |
14290 |
Wire harness pin-type retainer (part of 14290) |
| 4 |
19A786 |
Blower motor vent tube |
| 5 |
19805 |
Blower motor |
| 6 |
19834 |
Blower motor wheel |
| 7 |
18A287 |
Blower motor wheel clip |
