Front Impact Severity Sensor: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

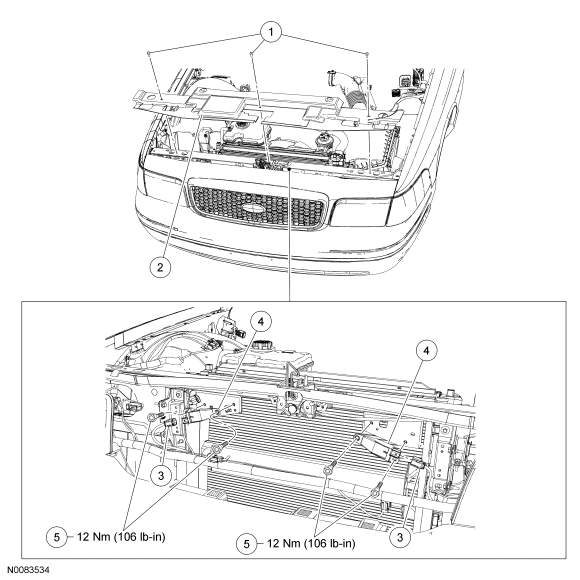

| Item |
Part Number |
Description |
| 1 |
- |
Pin-type retainers |
| 2 |
8C291 |
Radiator upper shield |
| 3 |
- |
Front impact severity sensor electrical connectors (part of 14290) |
| 4 |
14B006 |
Front impact severity sensors |
| 5 |
W707935 |
Front impact severity sensor bolts |
