Passenger Air Bag Module: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

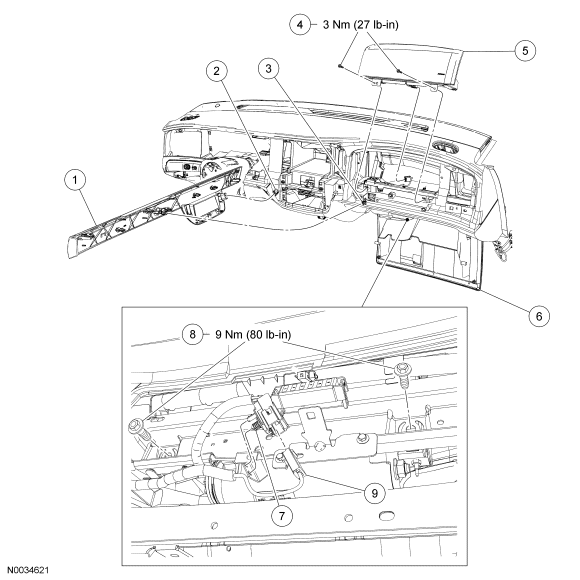

| Item | Part Number | Description |
|---|---|---|
| 1 | 046A62 | RH instrument panel trim panel |
| 2 | - | Rear window defrost switch electrical connector (part of 14401) |
| 3 | - | Passenger Air Bag Deactivation (PAD) indicator electrical connector (part of 14401) |
| 4 | N807122 | Front passenger air bag module bolts |
| 5 | 044A74 | Passenger air bag module |
| 6 | 060T10 | Glove compartment door |
| 7 | - | Passenger air bag module electrical connector pin-type retainer |
| 8 | W705314 | Passenger air bag module bolts |
| 9 | - | Passenger air bag module electrical connector (part of 14401) |
