Parcel Shelf Speaker: Notes

WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Premium speaker shown in illustration, others similar.

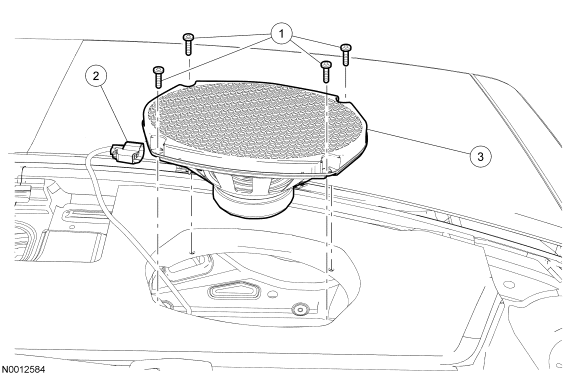

Fig 1: Exploded View Of Parcel Shelf Speaker
GF0018203Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W701930 Parcel shelf speaker screws (4 required)
2 14A005 Parcel shelf speaker electrical connector
3 18808 Parcel shelf speaker
