Wiper and Washer System - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|

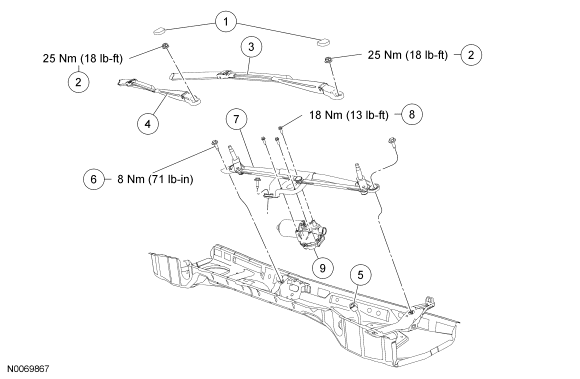

| 1 | - | Wiper pivot arm nut covers (2 required) |
| 2 | W709581 | Wiper pivot arm nuts (2 required) |
| 3 | 17C495 | LH wiper arm |
| 4 | 17B589 | RH wiper arm |
| 5 | 14290 | Electrical connector |
| 6 | W701834 | Wiper mounting arm and pivot shaft bolt (3 required) |
| 7 | 17500 | Wiper mounting arm and pivot shaft assembly |
| 8 | - | Wiper motor bolt (3 required) |
| 9 | 17504 | Wiper motor |
| Item | Part Number | Description |
|---|---|---|

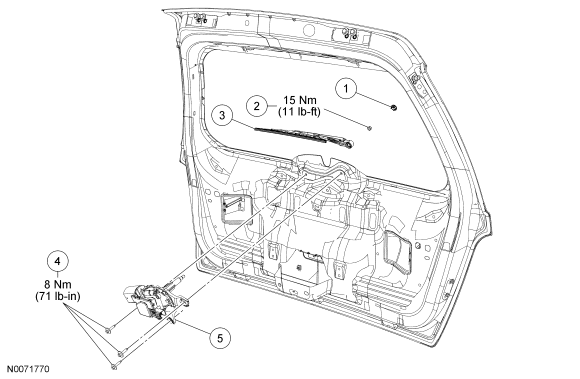

| 1 | 17A419 | Rear window wiper nut cover |
| 2 | 708312 | Rear window wiper pivot arm nut |
| 3 | 17C403 | Rear window wiper pivot arm |
| 4 | W503925 | Rear window wiper motor bolt (3 required) |
| 5 | 17404 | Rear window wiper motor |
NOTE:
Taurus and Sable shown in illustration, Taurus X similar.
| Item | Part Number | Description |
|---|---|---|

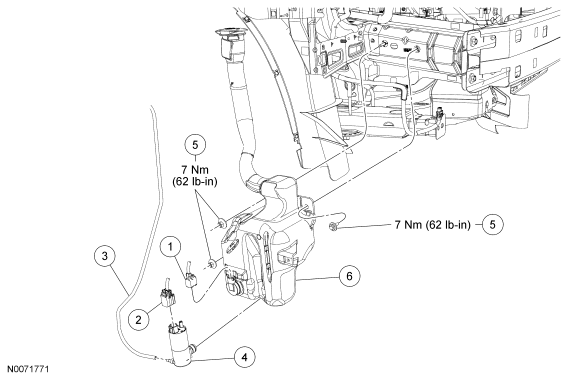

| 1 | - | Low washer fluid level sensor electrical connector |
| 2 | - | Washer pump electrical connector |
| 3 | 17K605 | Windshield washer hose |
| 4 | 17664 | Washer pump assembly |
| 5 | - | Windshield washer reservoir fasteners (1 bolt and 2 nuts required) |
| 6 | - | Windshield washer reservoir |
- For additional information, refer to the appropriate procedures.
