Rear Disc Brake System - Exploded View
WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

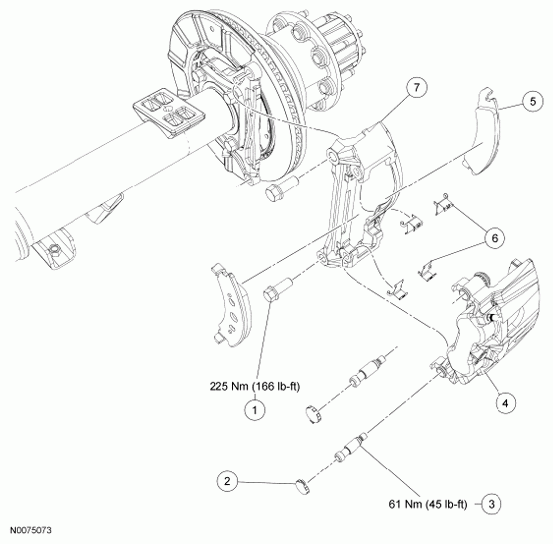

Rear Disc Brakes (View 1 of 3)
NOTE:
RH side shown in illustration, LH side similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W712550 | Brake caliper anchor plate bolt (2 required) |
| 2 | - | Brake caliper guide pin cap (2 required) (part of 2C150) |
| 3 | 2C150 | Brake caliper guide pin bolt (2 required) |
| 4 | 2552 | Brake caliper |
| 5 | 2200 | Brake pad (2 required) |
| 6 | - | Spring clips (4 required) (part of 2200) |
| 7 | 2B582 | Brake caliper anchor plate |

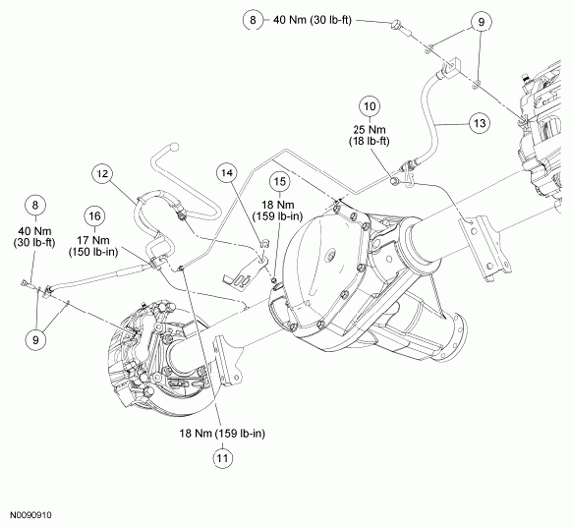

Rear Disc Brakes (View 2 of 3)
Fig 2: Exploded View Of Rear Disc Brakes With Torque SpecificationsExploded View Of Rear Disc Brakes With Torque Specifications (2 Of 3)
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 8 | 385116 | Brake caliper flow bolts |
| 9 | 2149 | Copper washers (2 required) |
| 10 | N802191 | Brake flexible hose bracket bolt |
| 11 | - | RH brake flexible hose tube fitting (part of 2A442) |
| 12 | 2A442 | LH brake flexible hose assembly |
| 13 | 2A442 | RH brake flexible hose assembly |
| 14 | 386493 | Brake flexible hose retaining clip |
| 15 | 2C008 | LH brake flexible hose tube fitting |
| 16 | 4022 | Axle vent |

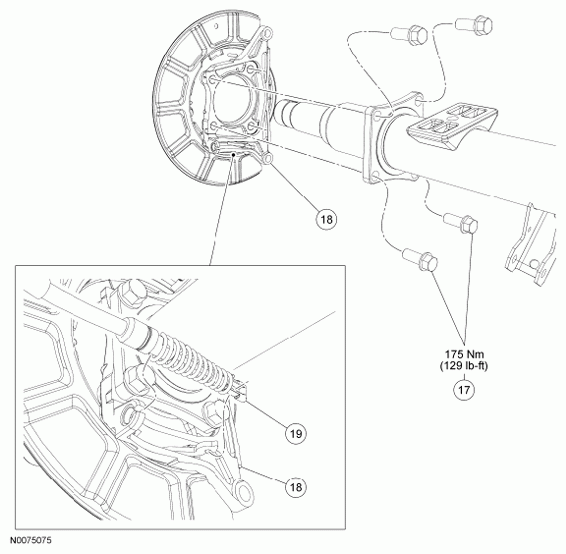

Rear Disc Brakes (View 3 of 3)
NOTE:
RH side shown in illustration, LH side similar.
Fig 3: Exploded View Of Rear Disc Brakes With Torque SpecificationsExploded View Of Rear Disc Brakes With Torque Specifications (3 Of 3)
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 17 | W712339 | Brake caliper support bracket bolts |
| 18 | 2C461 | Brake caliper support bracket |
| 19 | - | Parking brake cable and conduit (part of 2A635) |
- For additional information, refer to the appropriate procedure.
