Occupant Classification Sensor - Service Kit: Removal

WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.
WARNING: Install a new occupant classification sensor (OCS) system service kit as a complete assembly. Never install only part of the kit components. Failure to follow this instruction may result in incorrect operation of the OCS system and increases the risk of serious personal injury or death in a crash.
NOTE: It is necessary to carry out the occupant classification sensor (OCS) system reset when a front passenger seat backrest is separated from the seat cushion, the seat cushion is disassembled, a new trim cover is installed or an OCS system service kit is installed. A scan tool is used to trigger the active command to carry out rezeroing of the OCS system. Failure to follow these instructions may result in incorrect operation of the OCS system and may cause system failure.
NOTE: To identify between a production occupant classfication sensor (OCS) and an OCS system service kit, inspect the occupant classification system module (OCSM) electrical connector.  A production OCS allows the disconnect of the OCSM electrical connector. An OCS system service kit has the OCSM electrical connector glued to the OCSM. It cannot and should not be disconnected or altered.
NOTE: If removing an OEM OCS, refer to Occupant Classification Sensor - Original Equipment .
NOTE: The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.

All seats

  1. Position the seat to access all the seat track-to-floor pan bolts and the safety belt anchor.
  2. Remove the passenger front seat. For additional information, refer to SEATING article.

    3. Seats with manual recline

  3. Pull out and remove the recline handle.

    4. Seats with power

  4. Remove the power seat switch knobs.

    5. All seats

  5. Remove the rear screw, pull out on the side and front and separate the side shield.
    • Vehicles with manual seats, remove the side shield.

    6. Seats with power

  6. Remove the power seat control switch, and remove the side shield.

    7. Seats with heat

  7. Disconnect the heated seat electrical connector.

    8. All seats

  8. Release all the seat cushion trim cover J-clips.
  9. Release the hook-and-loop strip at the rear of the seat cushion trim cover.
  10. Remove the hog rings and seat cushion trim cover.
    11. Fig 1: Locating Hog Rings For Seat Cushion Trim Cover
    G03988965Courtesy of FORD MOTOR CO.

    Seats with power

    NOTE: Do not oversize the seat cushion frame holes used to rivet the occupant classification system module (OCSM) in place. Failure to follow this instruction may result in component damage and/or system failure.
  11. Separate the OCS components from the seat cushion frame.
    1. Cut the tie strap.
    2. Remove the electrical tape from the OCS service kit harness and pressure sensor hose.
    3. Remove the rivets with a 5 mm (3/16 in) drill and separate the OCSM from the seat cushion frame bracket.
    4. Bend and release the retaining tab holding the pressure sensor in place.
    5. Slide the pressure sensor off the bracket.
    6. Release the pin-type retainer and disconnect the electrical connector.

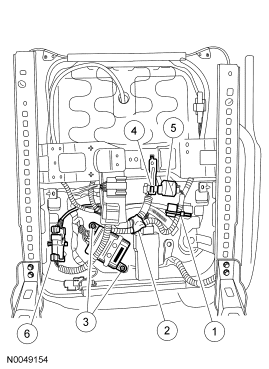

    12. Fig 2: Identifying Electrical Connector, ECU Rivets & Pressure Sensor
    GF0016910Courtesy of FORD MOTOR CO.

    Seats with manual seat track

    NOTE: Do not oversize the seat cushion frame holes used to rivet the occupant classification system module (OCSM) in place. Failure to follow this instruction may result in component damage and/or system failure.
  12. Separate the OCS components from the seat cushion frame.
    1. Cut the tie strap.
    2. Remove the electrical tape from the OCS service kit harness and pressure sensor hose.
    3. Remove the rivets with a 5 mm (3/16 in) drill and separate the OCSM from the seat cushion frame bracket.
    4. Bend and release the retaining tab holding the pressure sensor in place.
    5. Slide the pressure sensor off the bracket.
    6. Release the pin-type retainer and disconnect the electrical connector.

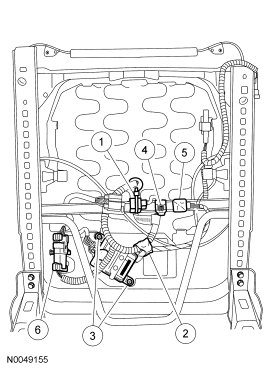

    13. Fig 3: Identifying Electrical Connector, ECU Rivets & Pressure Sensor
    GF0016911Courtesy of FORD MOTOR CO.

    All seats

  13. Remove the OCS from the seat cushion frame.
    • Feed the hose, pressure sensor, wire harness, electrical connector and OCSM through the seat cushion frame support assembly.
    14. Fig 4: Locating Hose, Pressure Sensor, Wire Harness, Electrical Connector & Electronic Control Unit
    GF0016467Courtesy of FORD MOTOR CO.
