Driver Air Bag Module: Notes
WARNING: This page is about a different car, the 2009 Ford Econoline and 2009 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

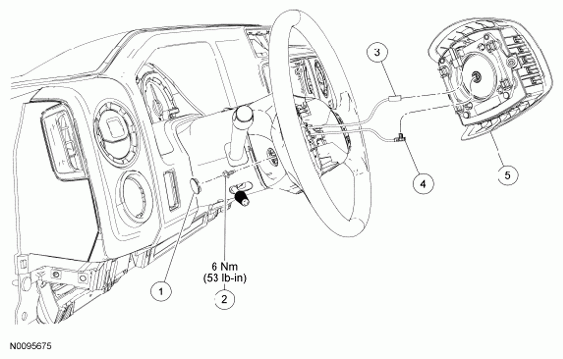

Courtesy of FORD MOTOR CO. PART NUMBER REFERENCE
| Item |
Part Number |
Description |
| 1 |
3L518 |
Driver air bag module bolt cap (2 required) |
| 2 |
- |
Driver air bag module bolt (2 required) |
| 3 |
- |
Horn electrical connector (part of 14A664) |
| 4 |
- |
Driver air bag module electrical connector (part of 14A664) |
| 5 |
043B13 |
Driver air bag module |
