Removal & Installation

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING article.
Disconnect the ABS module electrical connector.
Disconnect the hydraulic control unit (HCU) pump motor electrical connector.

NOTE: Care must be taken when removing the module from the HCU.

Remove the ABS module.
- Remove the screws in the sequence shown in illustration.
- To install, tighten to 3 Nm (27 lb-in).

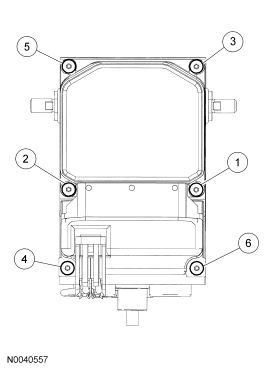

Fig 1: ABS Module Screws Removal Sequence

Courtesy of FORD MOTOR CO.

NOTE: Make sure that the ABS module-to-HCU gasket surfaces are clean and that the gasket is correctly installed.

To install, reverse the removal procedure.
