Parking Aid Module: Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

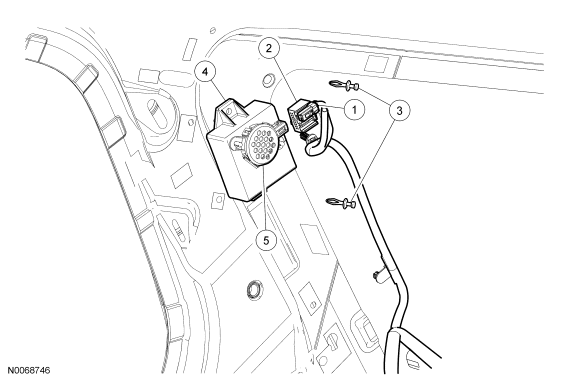

| Item |
Part Number |
Description |
| 1 |
- |
Parking aid speaker electrical connector (part of 14A005) |
| 2 |
- |
Parking aid module (PAM) electrical connector (part of 14A005) |
| 3 |
W706350 |
Pin-type retainers (2 required) |
| 4 |
15T850 |
PAM |
| 5 |
15A866 |
Parking aid speaker |
Courtesy of FORD MOTOR CO.

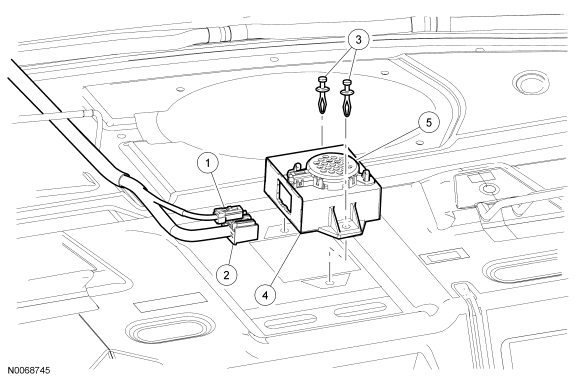

| Item |
Part Number |
Description |
| 1 |
- |
Parking aid speaker electrical connector (part of 14A005) |
| 2 |
- |
Parking aid module (PAM) electrical connector (part of 14A005) |
| 3 |
W706350 |
Pin-type retainers (2 required) |
| 4 |
15T850 |
PAM |
| 5 |
15A866 |
Parking aid speaker |
