Exhaust Gas Recirculation (EGR) System Components - Exploded View, 2.3L
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

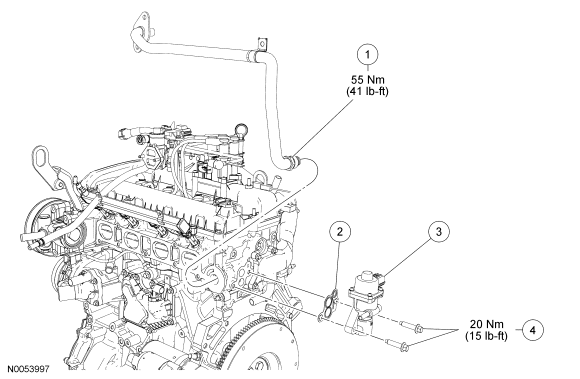

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components With Torque Specifications - 2.3L
| Item | Part Number | Description |
|---|---|---|
| 1 | 9E470 | Exhaust gas recirculation (EGR) outlet tube assembly |
| 2 | 9D476 | EGR valve gasket |
| 3 | 9D475 | EGR valve assembly |
| 4 | W500225 | EGR valve bolt (2 required) |
- For additional information, refer to the appropriate procedures.
