Driver Side Climate Controlled Seat Back Rest Module Connector (C3322)

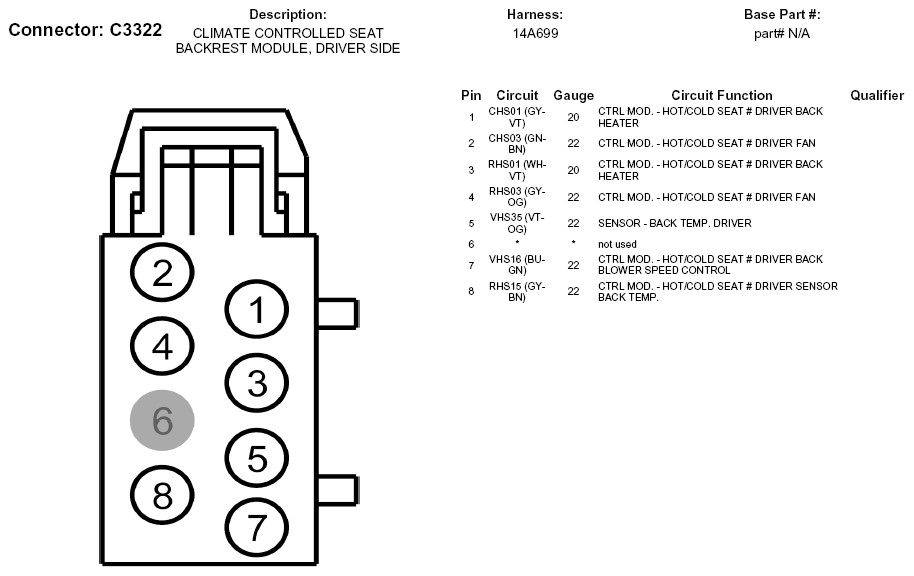

Fig 1: Driver Side Climate Controlled Seat Back Rest Module Connector End View (C3322)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
