Satellite Digital Audio Receiver System Module Connector (C4344)

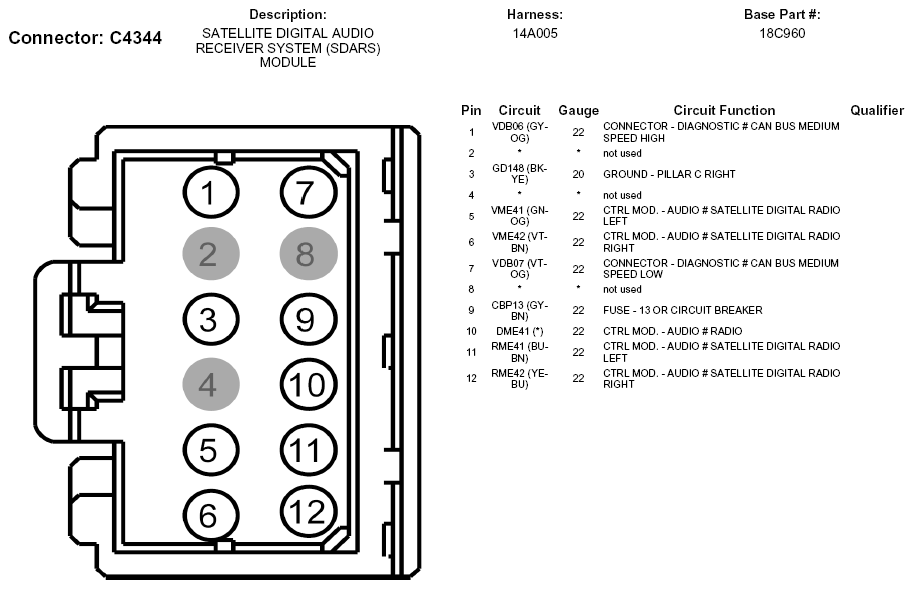

Fig 1: Satellite Digital Audio Receiver System Module Connector End View (C4344)
G05747207Courtesy of FORD MOTOR CO.
