Exhaust Gas Recirculation (EGR) System Components - Exploded View, 4.6L
WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

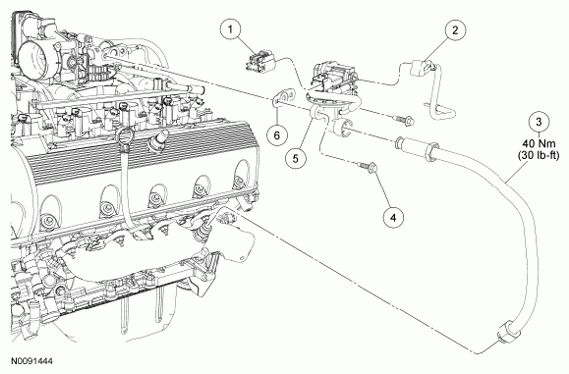

Fig 1: Exhaust Gas Recirculation (EGR) System Replacement Components With Torque Specifications -- Exploded View, 4.6L
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | EGR system module electrical connector (part of 12B637) |
| 2 | 9E498 | EGR system module vacuum connector |
| 3 | 9D477 | Exhaust manifold-to-EGR system module tube |
| 4 | W506024 | EGR system module bolt (2 required) |
| 5 | 9D475 | EGR system module |
| 6 | 9D476 | EGR system module gasket |
- For additional information, refer to the appropriate procedures.
