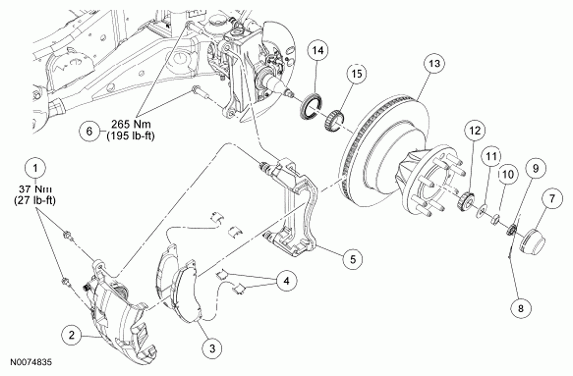

Front Disc Brake (View 1 of 2)
WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Dual Rear Wheels (DRW) shown in illustration, Single Rear Wheel (SRW) similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 2C534 | Brake caliper guide pin bolts (2 required) |
| 2 | 2B120 | Brake caliper |
| 3 | 2018 | Brake pads |
| 4 | 2B164 | Brake pad anti-rattle clips (4 required) |
| 5 | 2B292 | Brake caliper anchor plate |
| 6 | N811625 | Brake caliper anchor plate bolts (2 required) |
| 7 | 1131 | Hub grease cap |
| 8 | N642569 | Cotter pin |
| 9 | 390622 | Spindle nut retainer |
| 10 | 374504 | Spindle nut |
| 11 | 1195 | Outer wheel bearing retainer washer |
| 12 | 1216 | Outer wheel bearing |
| 13 | 1102 | Brake disc and hub |
| 14 | 1201 | Inner wheel bearing |
| 15 | 1190 | Grease seal |
