Front Disc Brake (View 2 of 2)
WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

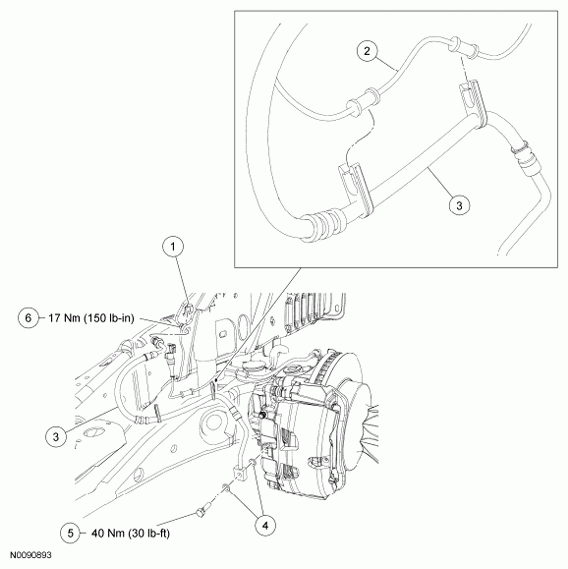

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 386493 | Brake flexible hose retaining clip |
| 2 | 2C204 RH/2C205 LH | Wheel speed sensor |
| 3 | 2078 | Brake flexible hose |
| 4 | 388949 | Copper washers (2 required) |
| 5 | 385116 | Brake caliper flow bolt |
| 6 | - | Brake tube fitting (part of 2263 RH/2264 LH) |
- For additional information, refer to the appropriate procedure.
