Speed Control Deactivator Switch




Speed Control Deactivator Switch

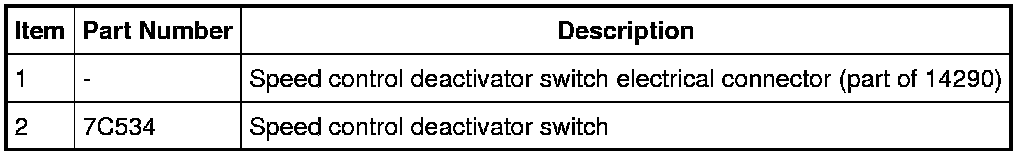

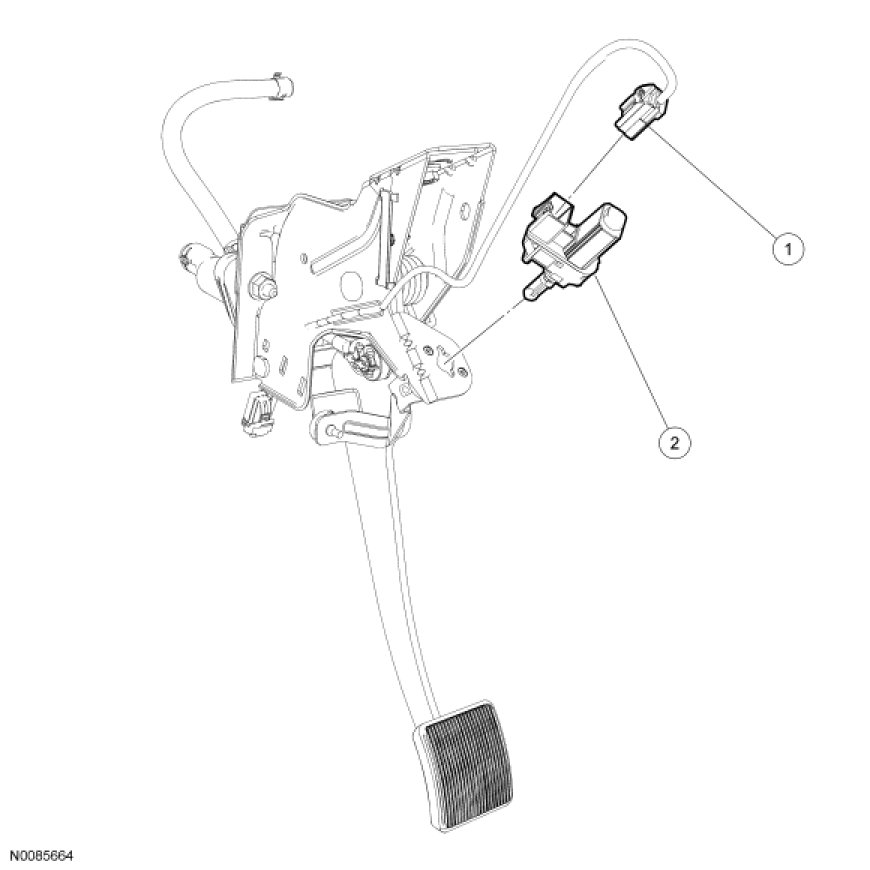

Removal and Installation

1. Disconnect the electrical connector.

2. Rotate the speed control deactivator switch counterclockwise one-quarter turn.

3. Remove the speed control deactivator switch.

4. NOTE: When installing the speed control deactivator switch, it is automatically self-adjusting to the correct position. Do not pull up or push down on the pedal during installation. Initial installation of the speed control deactivator switch allows for one adjustment. If additional adjustments are necessary, install a new switch.

To install, reverse the removal procedure.
