Ignition Coil-On-Plug

Ignition Coil-On-Plug





Removal and Installation

LH side

1. Remove the air cleaner.

RH side

2. NOTE: The upper intake manifold must be removed to access the RH ignition coils only.

Remove the upper intake manifold.

Both sides

3. Disconnect the ignition coil electrical connectors.

4. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

Remove the bolts and the ignition coils.

- To install, tighten to 7 Nm (62 lb-in).

5. To install, reverse the removal procedure.

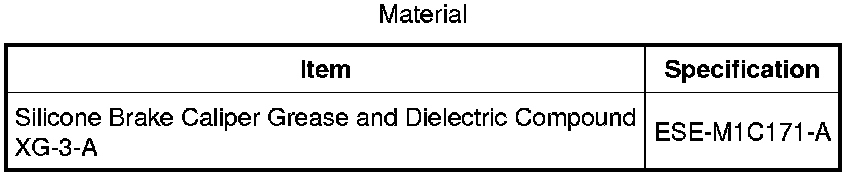

- Apply a small amount of dielectric grease to the inside of the ignition coil boots before attaching to the spark plugs.
