Subframe - Rear: Notes

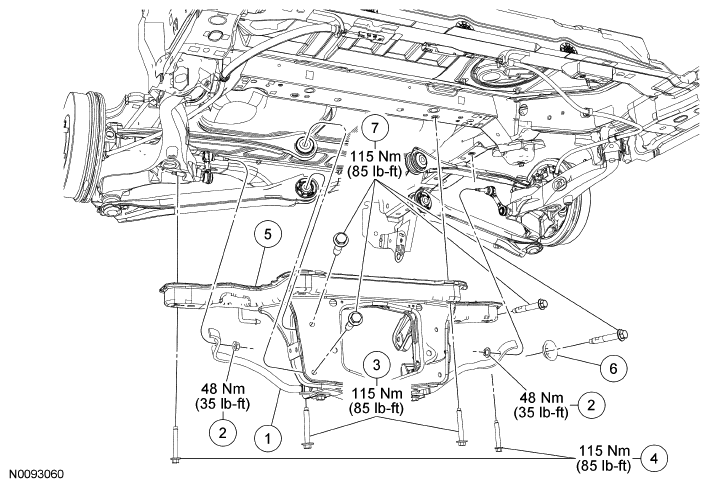

Fig 1: Identifying Rear Subframe Removal And Installation
G06100298Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 5A772 Stabilizer bar
2 W520213 Rear stabilizer bar link upper nuts
3 W707721 Rear subframe front bolts (2 required)
4 W706901 Rear subframe rear bolts (2 required)
5 5C145 Rear subframe
6 4059 Washer
7 W707646 Rear control arm bolts (4 required)
