Audio Control Module Connector End View (C240A)

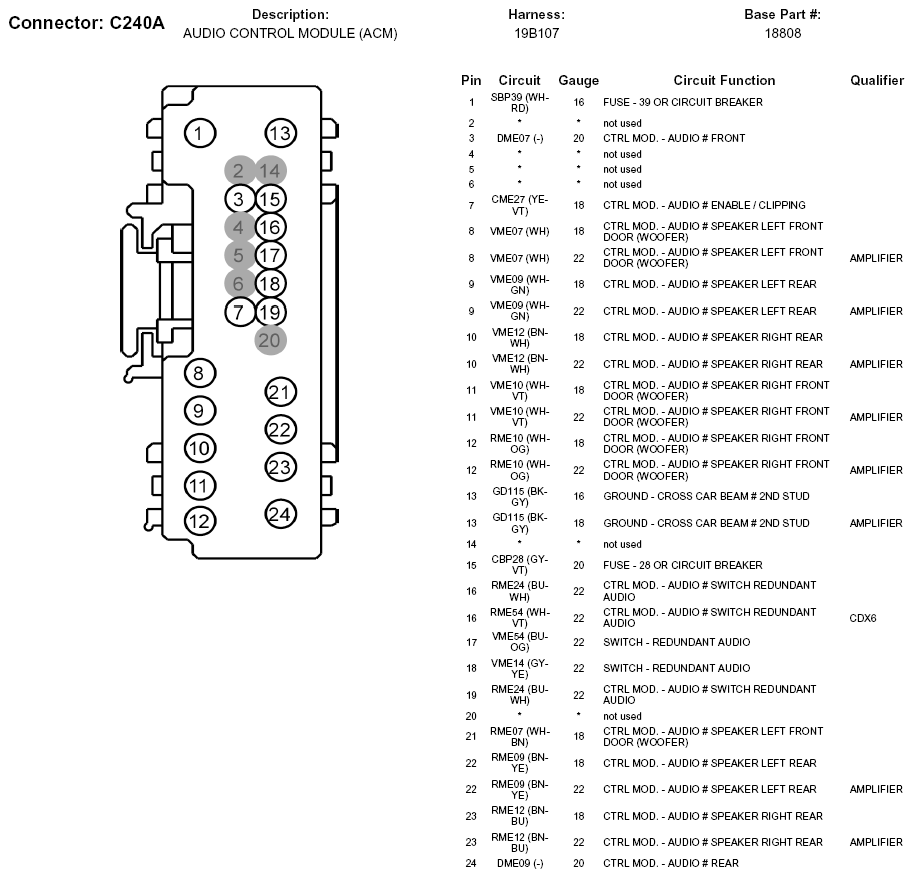

Fig 1: Audio Control Module Connector End View (C240A)

G05747291

Courtesy of FORD MOTOR CO.
