Power Steering Control Module Connector End View (C1463B)

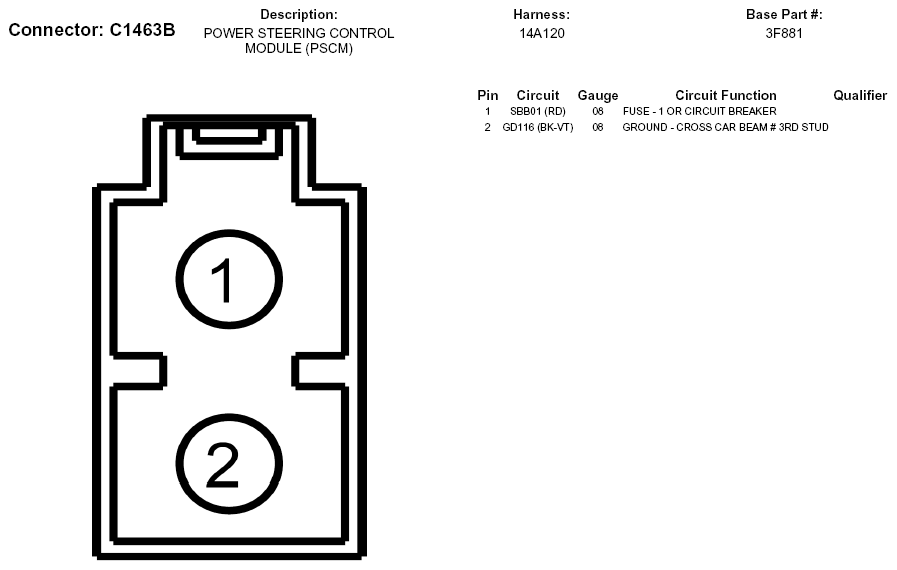

Fig 1: Power Steering Control Module Connector End View (C1463B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
