Satellite Digital Audio Receiver System (SDARS) Module: Notes

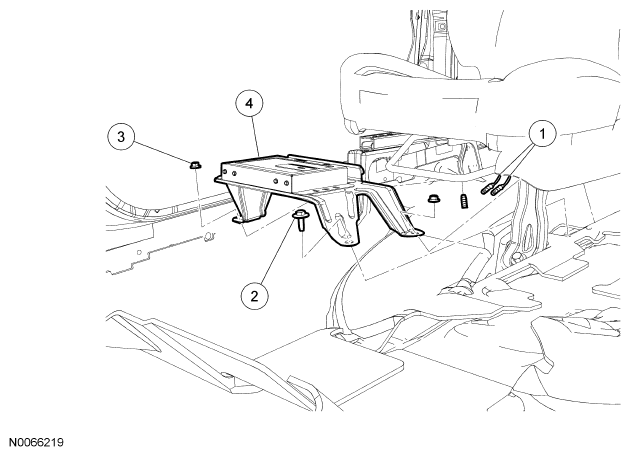

Fig 1: Identifying Satellite Digital Audio Receiver System Module
G06099109Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Satellite Digital Audio Receiver System (SDARS) module antenna cable and electrical connectors
2 W707257-S SDARS module bolt
3 W707142-S SDARS module nuts (2 required)
4 18806 SDARS module
