Pinpoint Test DV: Throttle Body Assembly Electronic Throttle Control (Etc): Introduction
WARNING:
SUBSTANTIAL OPENING AND CLOSING TORQUE IS APPLIED BY THIS SYSTEM. TO PREVENT INJURY, BE CAREFUL TO KEEP FINGERS AWAY FROM THROTTLE MECHANISM WHEN ACTUATED. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
NOTE:
The voltage of the TP2 circuit and PID reaches a limit of approximately 4.5 volts at approximately 45 degrees of throttle angle.
This pinpoint test is intended to diagnose the following:
- electronic throttle body (ETB) (9F991)
- electronic throttle body throttle position sensor (ETBTPS) (9E928)
- harness circuits: ETCRTN, ETCREF, TP1, TP2, TACM+, and TACM-
- powertrain control module (PCM) (12A650)
For PCM connector views or reference values, refer to REFERENCE VALUES .

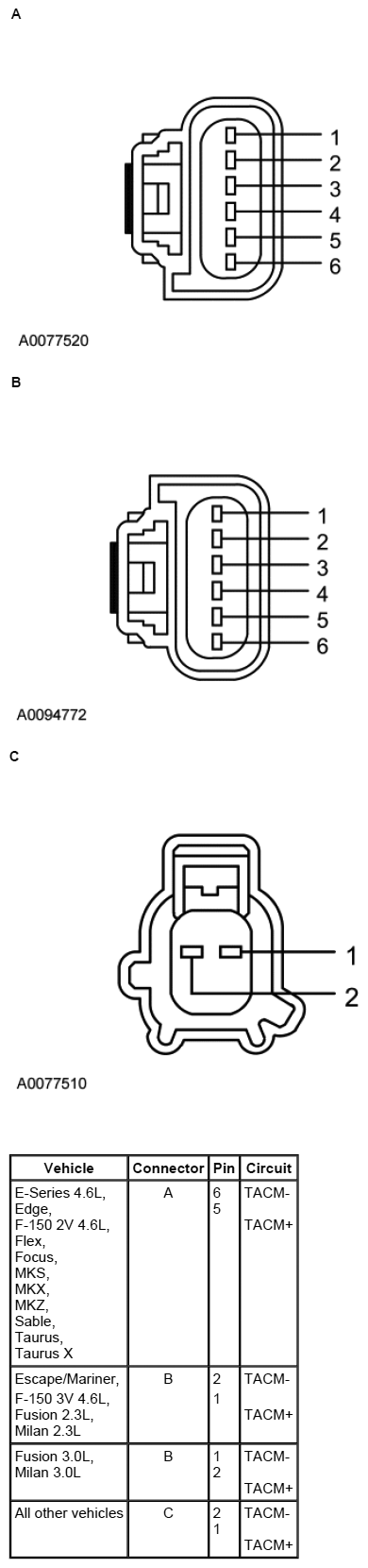

POWERTRAIN CONTROL MODULE (PCM) CONNECTOR
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Crown Victoria, Explorer, Explorer Sport Trac, Grand Marquis, Mountaineer, Town Car |
170 Pin | B24, B4, E66 B43, B6, E59 B35 B47 E51 E34 E60 E61 |
ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1 |
| E-Series 4.6L, E-Series 5.4L, Expedition, F-150, Navigator |
190-Pin | E59 E60 B67 B22 E51 E34 E45 E44 |
ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1 |
| E-Series 6.8L, F-Super Duty |
170 Pin | B16, B4, E66 B18, B6, E59 B35 B47 E51 E34 E60 E61 |
ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1 |
| Escape/Mariner | 190-Pin | E57 E61 B67 B69 E51 E34 E58 E41 |
ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1 |
| Focus | 190-Pin | E59 E60 B67 B69 E51 E34 E45 E44 |
ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1 |
| Fusion, Milan, MKZ |
140 Pin | B21, B28, E66 B59, B60, E59 B51 B67 E51 E34 E60 E61 |
ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1 |
| Mustang | 170 Pin | B24, B4, E66 B41, B6, E59 B35 B47 E51 E34 E60 E61 |
ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1 |
| All other vehicles | 190-Pin | B21, B28, E66 B59, B65, E59 B51 B67 E51 E34 E60 E61 |
ETCREF ETCRTN VPWR PWRGND TACMTACM+ TP2 TP1 |
