Pinpoint Test HK: Variable Camshaft Timing (VCT): Introduction

This pinpoint test is intended to diagnose the following:

• VCT solenoid (6L713) or (6B297)
• spider assembly right bank (6C260) or left bank (6C261)
• harness circuits: VPWR and VCT
• powertrain control module (PCM) (12A650)

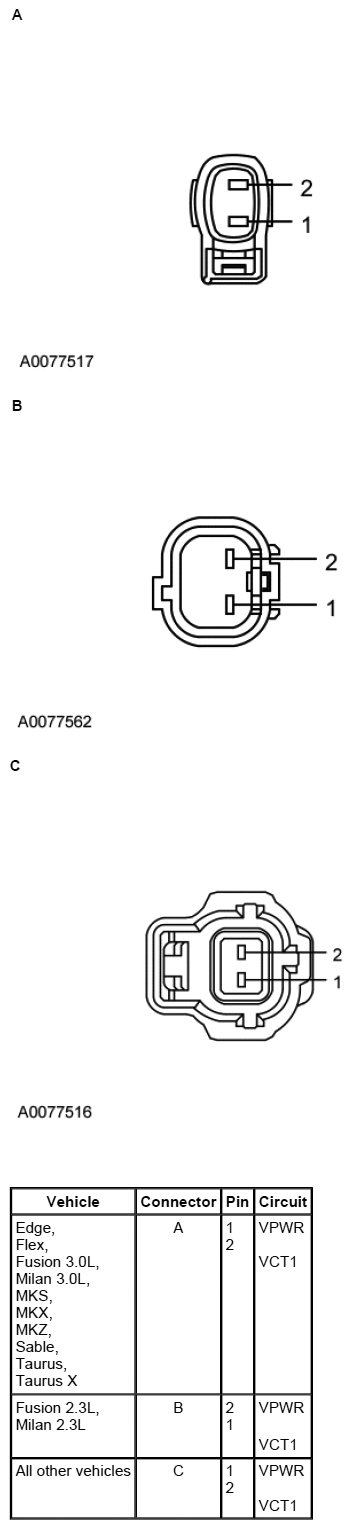

Fig 1: Variable Camshaft Timing Bank 1 (VCT1) Solenoid Connector

Courtesy of FORD MOTOR CO.

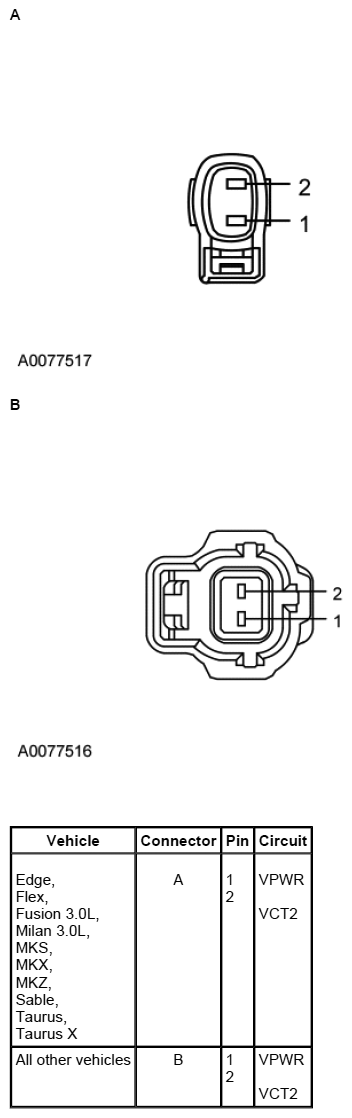

Fig 2: Variable Camshaft Timing Bank 2 (VCT2) Solenoid Connector

Courtesy of FORD MOTOR CO.

For PCM connector views or reference values, refer to REFERENCE VALUES .
