Pinpoint Test QE: Electronic Throttle Control (Etc) System: Introduction
NOTE:
Diagnose and repair the following diagnostic trouble codes (DTCs) through
DTC LIST
, and the service information respectively before entering this pinpoint test:
- P0715
- P0720
- P0731-P0735
- P0102-P0104
- P0321
- C1165
- U1027
This pinpoint test is intended to diagnose the informational powertrain control module (PCM) DTCs.
The informational DTCs are the result of limited operating strategy (LOS) or failure mode effects management (FMEM) operating strategy that maintains limited vehicle function in the event of a PCM, harness, or component concern.
Circuit DTCs can be accompanied by the informational DTCs, and should be diagnosed first. Informational DTCs without circuit DTCs may or may not indicate the actual concern and should be diagnosed as a symptom.

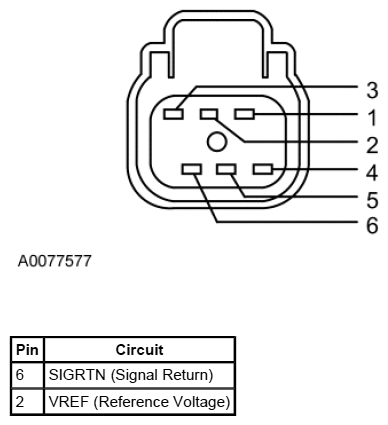

POWERTRAIN CONTROL MODULE (PCM) CONNECTOR
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Crown Victoria, Grand Marquis, Ranger, Town Car |
170 Pin | B35, B36 | VPWR |
| E-Series 6.8L, Explorer, Explorer Sport Trac, F-Super Duty, Mountaineer, Mustang |
170 Pin | B35, B36 B37 |
VPWR PCMRC |
| Edge, Flex, MKS, MKX, Sable, Taurus, Taurus X |
190-Pin | B51, B52, B53 B8 |
VPWR PCMRC |
| F-150 2V 4.6L | 190-Pin | B67, B68 B40 |
VPWR PCMRC |
| Fusion, Milan, MKZ |
140 Pin | B51, B52 B35 |
VPWR PCMRC |
| All other vehicles | 190-Pin | B67, B68 B38 |
VPWR PCMRC |
