Anti-Lock Brake System Module Connector End View (C155)

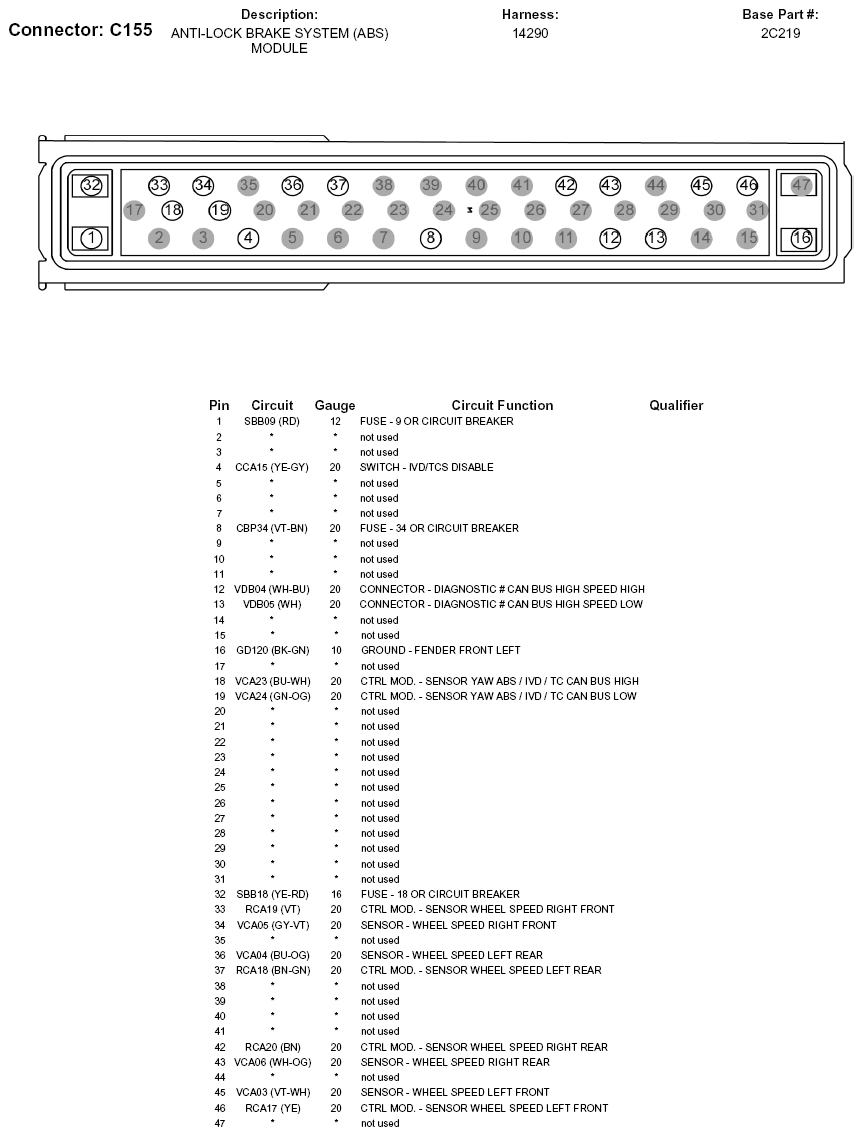

Fig 1: Anti-Lock Brake System Module Connector End View (C155)
G05747253Courtesy of FORD MOTOR CO.
