Exhaust System - Exploded View

2.5L

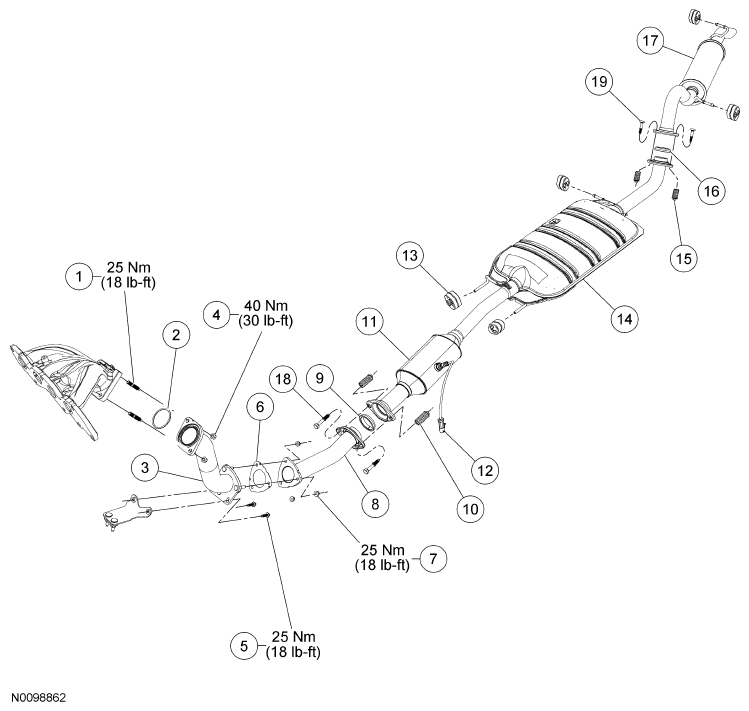

Fig 1: Exploded View Of Exhaust System (2.5L)

Courtesy of FORD MOTOR CO.

PART NUMBER DESCRIPTION

Item	Part Number	Description
1	W711133	Exhaust downpipe-to exhaust manifold stud (2 required)
2	9451	Gasket
3	9N497	Exhaust downpipe
4	W520414	Exhaust downpipe-to-exhaust manifold nut (2 required)
5	W712021	Exhaust downpipe bracket bolt (2 required)
6	9451	Gasket
7	W520413	Exhaust intermediate pipe nut (3 required)
8	5E256	Exhaust intermediate pipe
9	5E241	Gasket
10	5G215	Catalytic converter-to-intermediate pipe spring nut (2 required)
11	5E211	Underbody catalytic converter
12	14A464	Catalyst Monitor Sensor (CMS) electrical connector
13	5A262	Exhaust hanger (5 required)
14	5230	Muffler
15	5G215	Resonator-to-muffler spring nut (2 required)
16	5E241	Gasket
17	5212	Resonator assembly
18	W790170	Intermediate pipe flange studs (2 required)
19	W790190	Resonator flange studs (2 required)

3.0L (View 1 of 2)

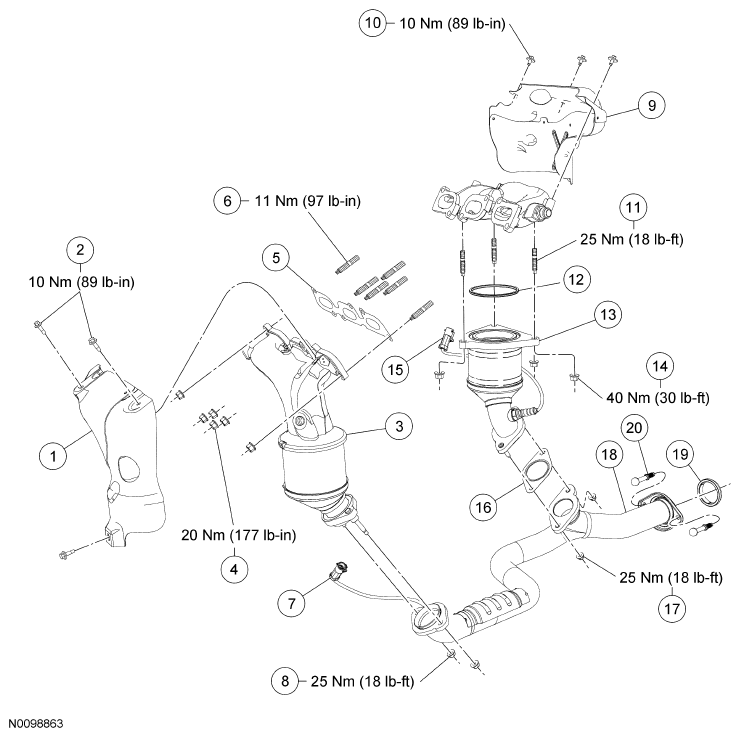

Fig 2: Exploded View Of Exhaust System - 3.0L (1 Of 2)

Courtesy of FORD MOTOR CO.

PART NUMBER DESCRIPTION

Item	Part Number	Description
1	5E258	LH catalytic converter heat shield
2	W714133	Heat shield bolts (3 required)
3	5G232	LH catalytic converter
4	W701706	LH catalytic converter manifold nut (6 required)
5	9448	LH catalytic converter manifold gasket
6	701732	LH catalytic converter manifold stud (6 required)
7	14A464	LH Catalyst Monitor Sensor (CMS) electrical connector
8	W520413	LH catalytic converter manifold-to-Y-pipe nut (2 required)
9	5K282	RH catalytic converter heat shield
10	W714133	RH heat shield bolt (3 required)
11	W711133	RH catalytic converter-to-manifold stud (3 required)
12	5F263	RH catalytic converter manifold gasket
13	5E212	RH catalytic converter
14	W520414	Catalytic converter-to-manifold nut (3 required)
15	14A464	RH CMS electrical connector
16	9451	Catalytic converter manifold-to-Y-pipe gasket
17	W520413	RH catalytic converter manifold-to-Y-pipe nut (2 required)
18	5E256	Exhaust Y-pipe
19	5E241	Gasket
20	W790170	Exhaust Y-pipe studs (2 required)

3.0L (View 2 of 2)

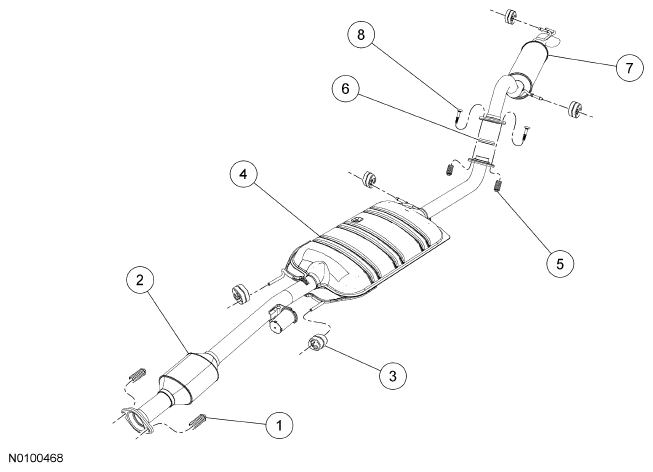

Fig 3: Exploded View Of Exhaust System - 3.0L (2 Of 2)

Courtesy of FORD MOTOR CO.

PART NUMBER DESCRIPTION

Item	Part Number	Description
1	5G215	Underbody catalytic converter-to-Y-pipe spring nut (2 required)
2	5E211	Underbody catalytic converter
3	5A262	Exhaust hanger (5 required)
4	5230	Muffler
5	5G215	Resonator-to-muffler spring nut (2 required)
6	5E241	Gasket
7	5212	Resonator assembly
8	W790190	Resonator flange stud (2 required)

2.5L Hybrid

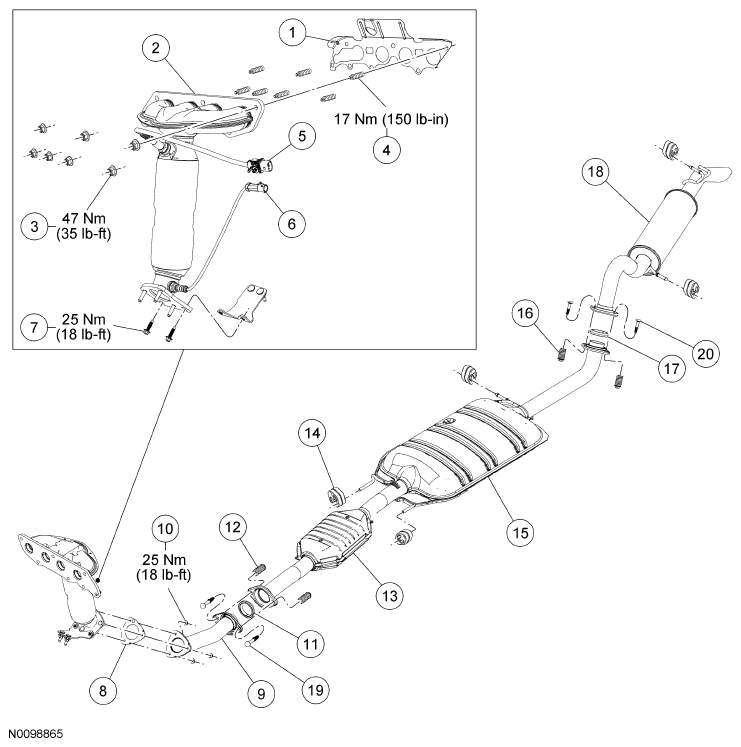

Fig 4: Exploded View Of Exhaust System - 2.5L Hybrid

Courtesy of FORD MOTOR CO.

PART NUMBER DESCRIPTION

Item	Part Number	Description
1	9448	Catalytic converter manifold gasket
2	5G241	Catalytic converter
3	W708176	Catalytic converter manifold nut (7 required)
4	W704474	Catalytic converter manifold stud (7 required)
5	14A464	Heated Oxygen Sensor (HO2S) electrical connector
6	14A464	Catalyst Monitor Sensor (CMS) electrical connector
7	W712021	Exhaust downpipe bracket bolt (2 required)
8	9451	Gasket
9	5E256	Exhaust intermediate pipe
10	W520413	Exhaust intermediate pipe nut (3 required)
11	5E241	Gasket
12	5G215	Catalytic converter-to-intermediate pipe spring nut (2 required)
13	5E211	Underbody catalytic converter
14	5A262	Exhaust hanger (5 required)
15	5230	Muffler
16	5G215	Resonator-to-muffler spring nut (2 required)
17	5E241	Gasket
18	5212	Resonator assembly
19	W790170	Exhaust intermediate pipe flange studs (2 required)
20	W790190	Resonator flange studs (2 required)
