Gearshift Lever: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Position the gearshift lever.
  2. Connect the gearshift cables to the gearshift lever.

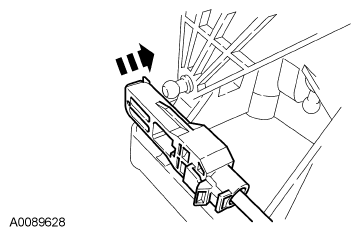

    Fig 1: Connecting Gearshift Cables To Gearshift Lever
    G06098345Courtesy of FORD MOTOR CO.

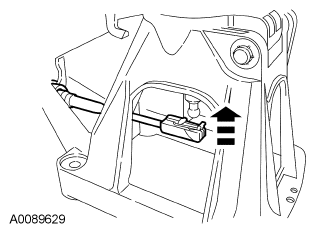

    Fig 2: Identifying Shift Cable
    G06098346Courtesy of FORD MOTOR CO.
    3. NOTE: Make sure the clips are set completely within the cable adapter groove and fully seated.

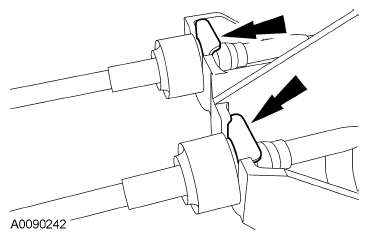

    Fig 3: Locating Gearshift Cable Clips
    G06098344Courtesy of FORD MOTOR CO.
  3. Install the 2 gearshift cable clips.
  4. Install the 4 gearshift lever nuts.
    • Tighten to 25 Nm (18 lb-ft).
  5. Adjust the gearshift cables. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION AND CLUTCH - GENERAL INFORMATION article.
  6. Install the floor console finish panel.
  7. Install the gearshift lever knob and boot assembly.
