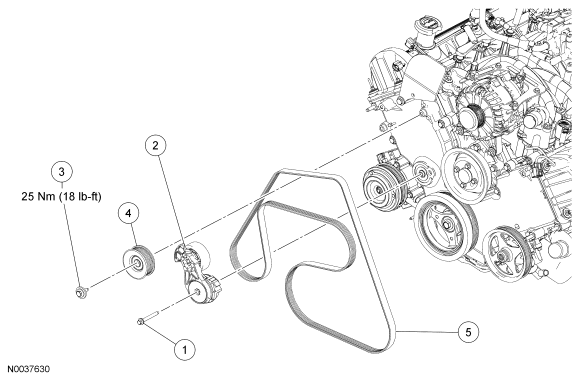

Front End Accessory Drive (FEAD) - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705738 | Accessory drive belt tensioner bolt |
| 2 | 6B209 | Accessory drive belt tensioner |
| 3 | N808102 | Accessory drive belt idler pulley bolt |
| 4 | 8678 | Accessory drive belt idler pulley |
| 5 | 8620 | Accessory drive belt |
- For additional information, refer to the appropriate procedures .
