Power Steering Pump: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

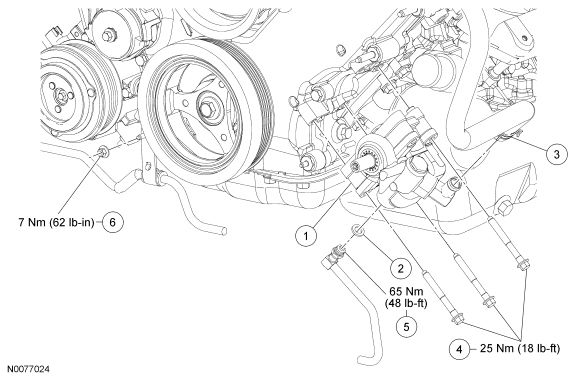

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A674 | Power steering pump |
| 2 | 388898 | Teflon® seal |
| 3 | 3691 | Power steering pump supply hose |
| 4 | W707225 | Power steering pump bolts (3 required) |
| 5 | - | Pressure line-to-pump fitting (part of 3A719) |
| 6 | N621906 | Pressure line bracket-to-engine nut |
