Exterior Lighting Module: Service and Repair

Ballast









Removal and Installation

NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.

1. Remove the headlamp assembly. For additional information, refer to Headlamp Assembly Service and Repair.

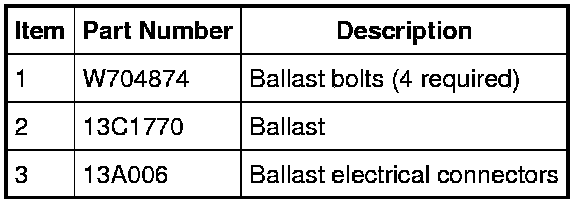

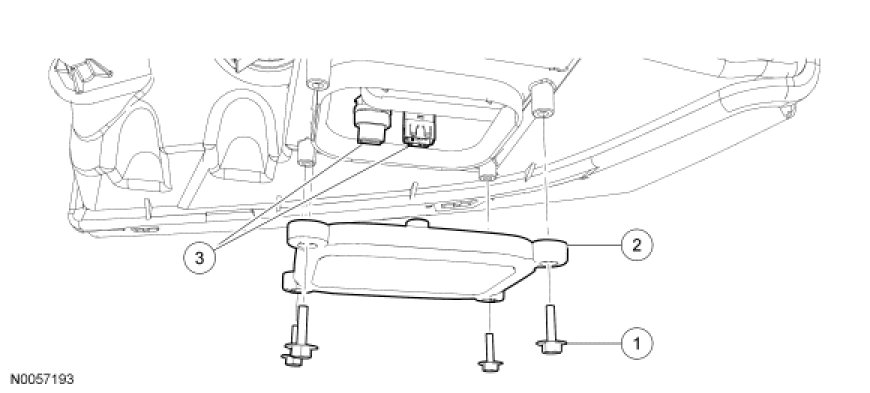

2. Remove the 4 bolts and the ballast.
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
