Master window adjust switch - Navigator: Schematic

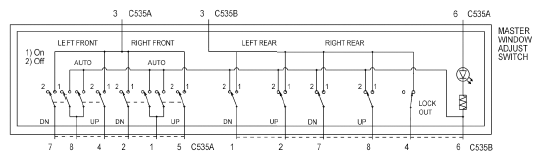

Fig 1: Master Window Adjust Switch - Navigator Schematic
G05753240Courtesy of FORD MOTOR CO.
