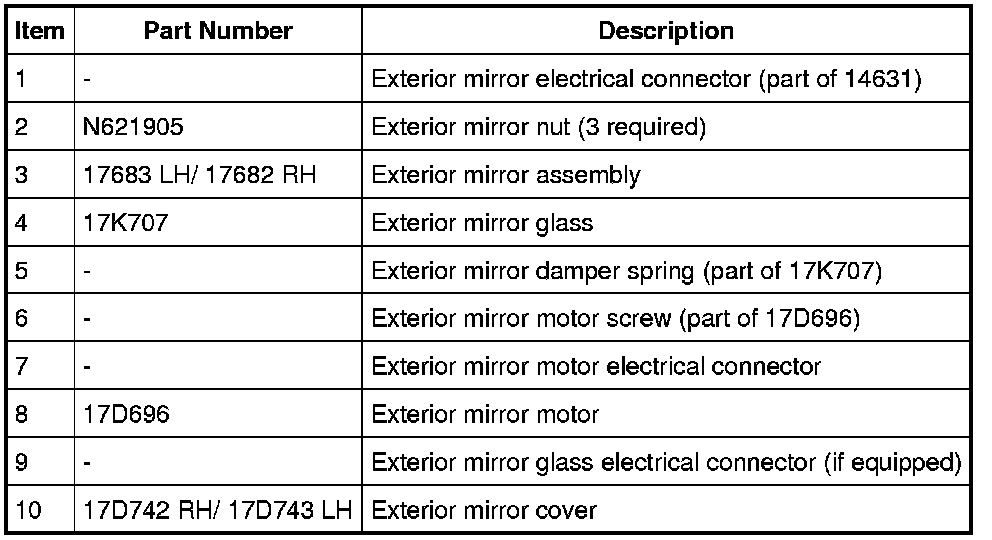

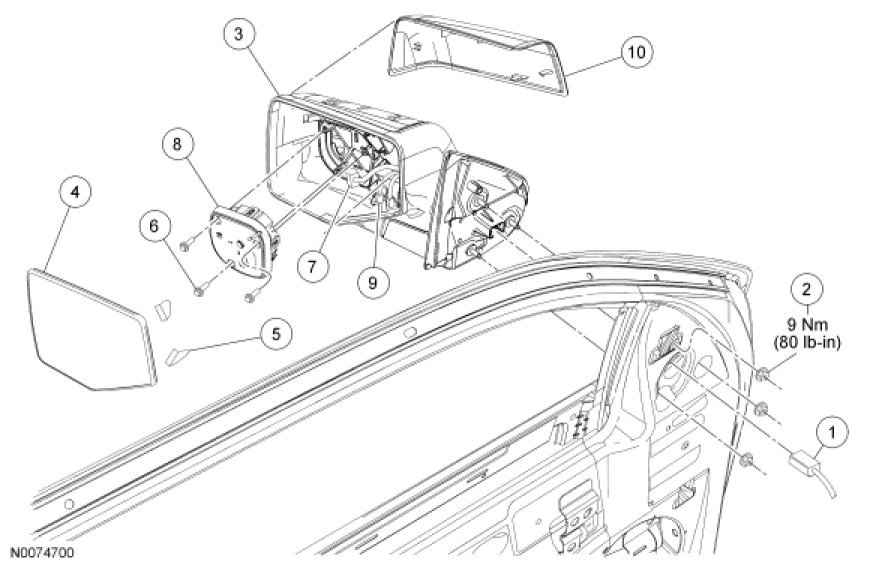

Exterior Mirrors - Exploded View




Exterior Mirrors - Exploded View

NOTE: LH shown, RH similar.










1. For additional information, refer to the procedures.
