Fog/Driving Lamp: Service and Repair

Fog Lamp

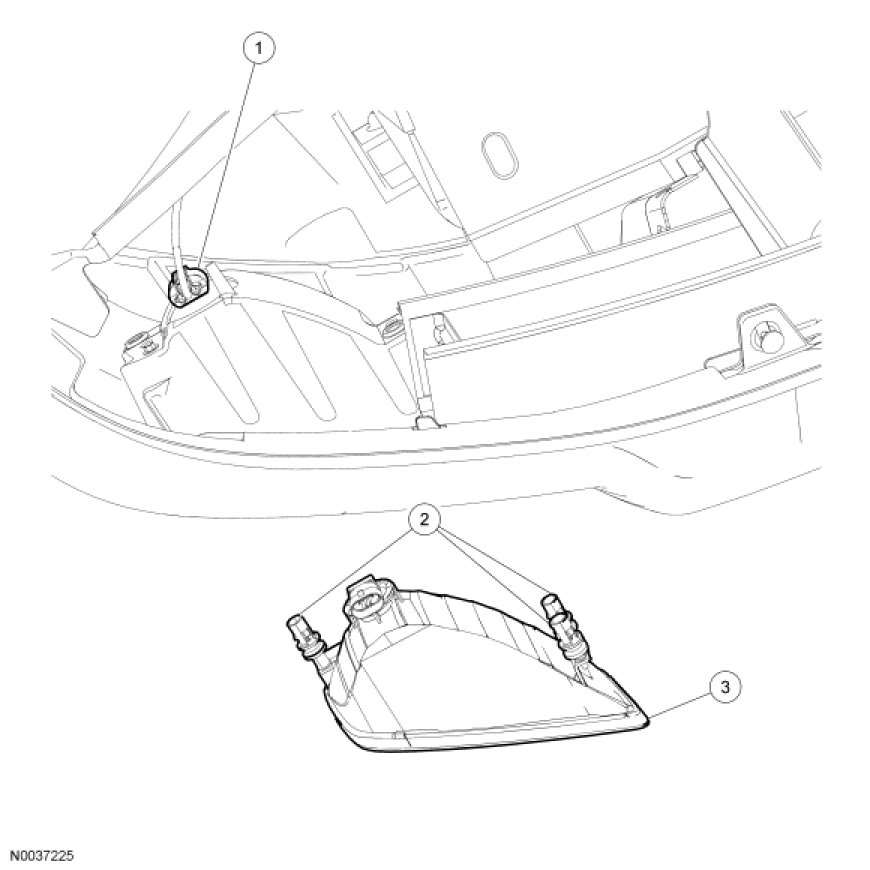

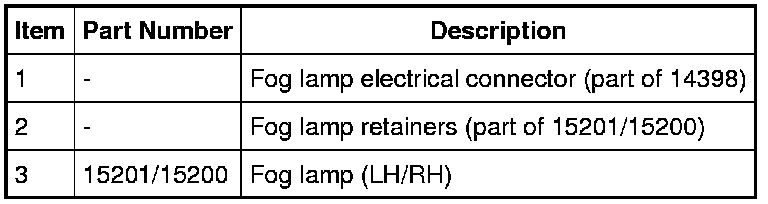

Base Fog Lamp

NOTE: Explorer, Explorer Sport Trac shown, Mountaineer similar.

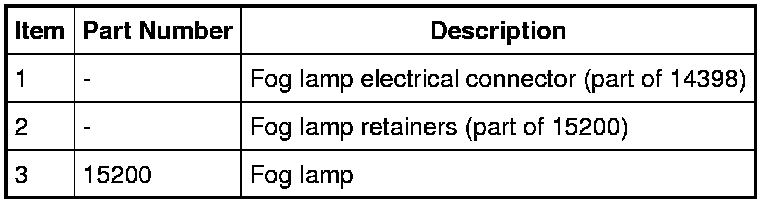

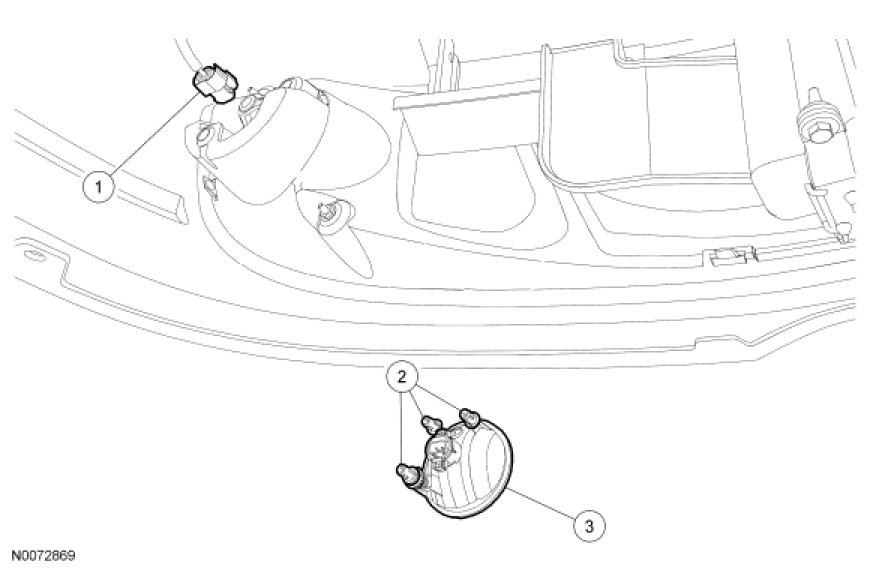

Adrenalin Package Fog Lamp









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the fog lamp electrical connector.

3. NOTE: Use a 13 mm (0.5 in) diameter tool to collapse the tabs.

Collapse the tabs and remove the fog lamp.

4. To install, reverse the removal procedure.
