DL - Cylinder Head Temperature (CHT) Sensor

PINPOINT TEST DL: CYLINDER HEAD TEMPERATURE (CHT) SENSOR

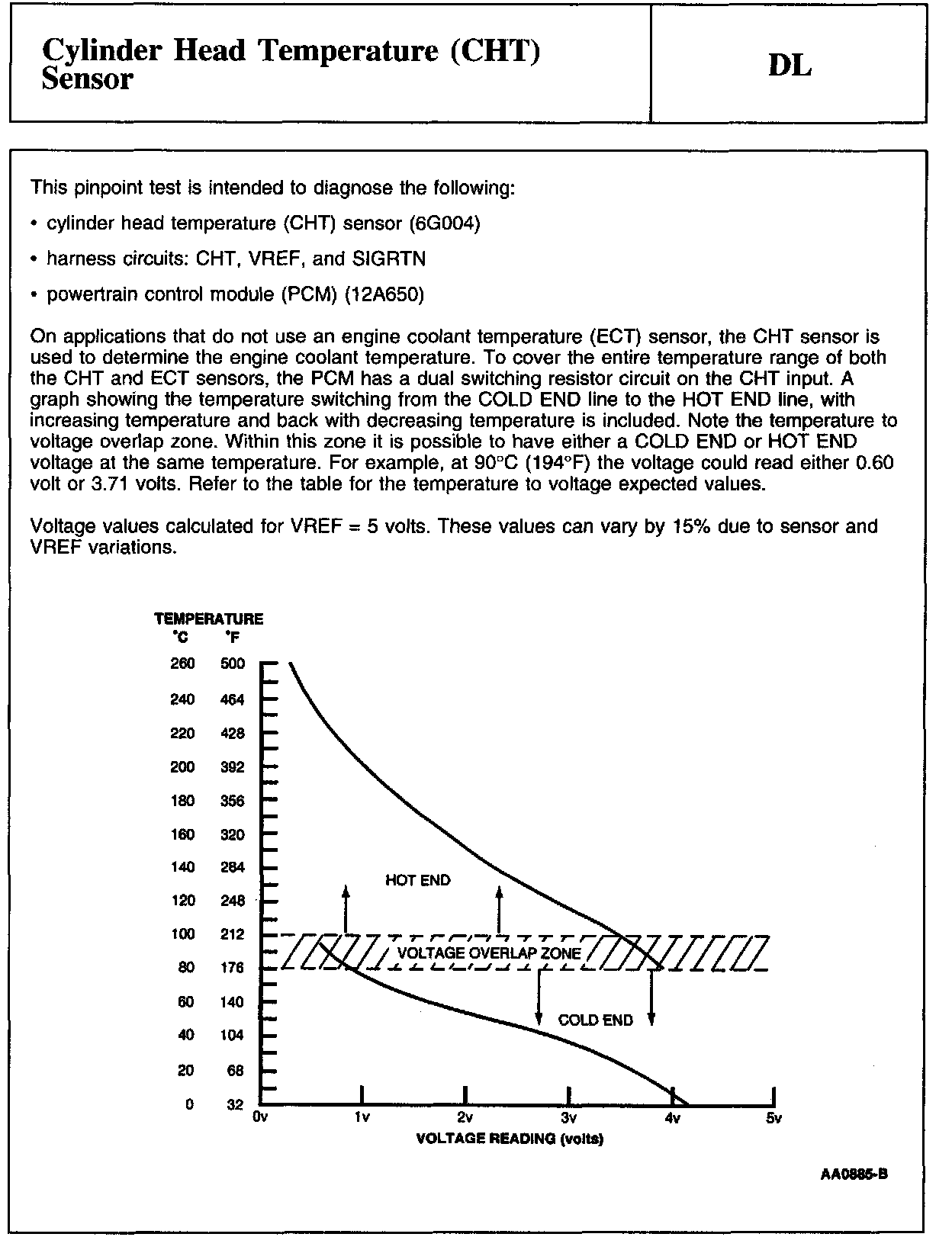

Voltage Reading Graph:

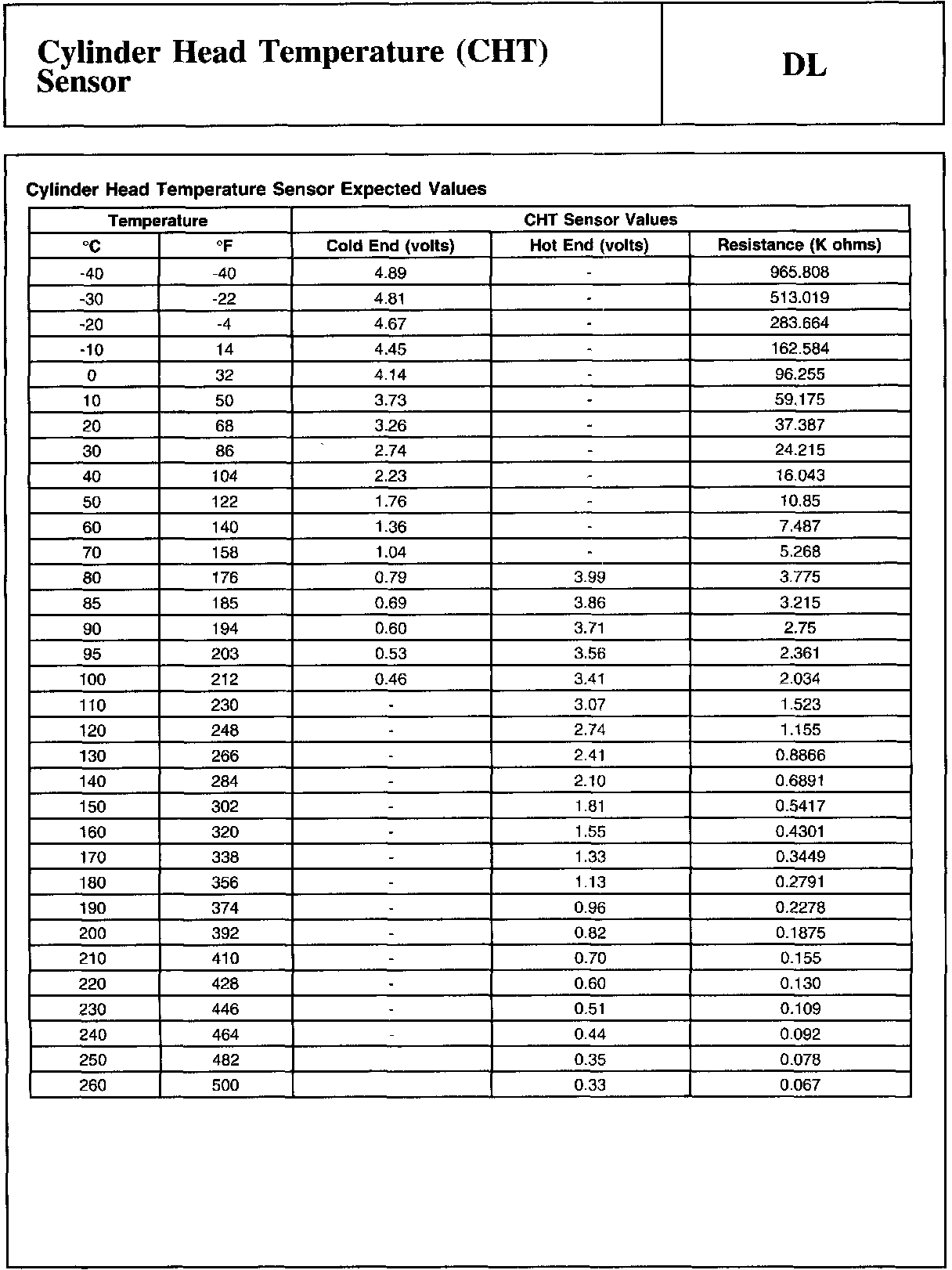

Cylinder Head Temperature Sensor Expected Values:

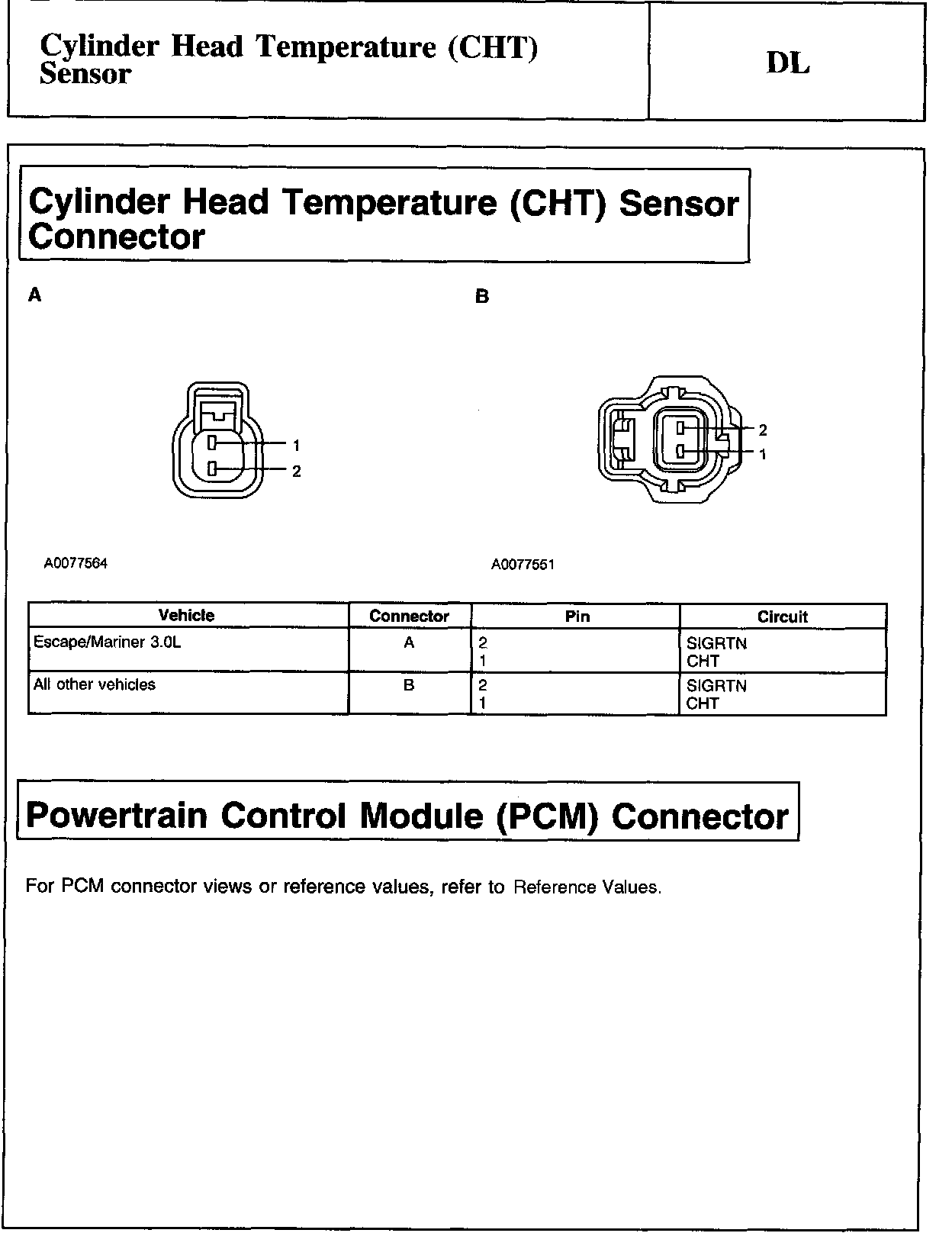

Cylinder Head Temperature Sensor And Powertrain Control Module Connector:

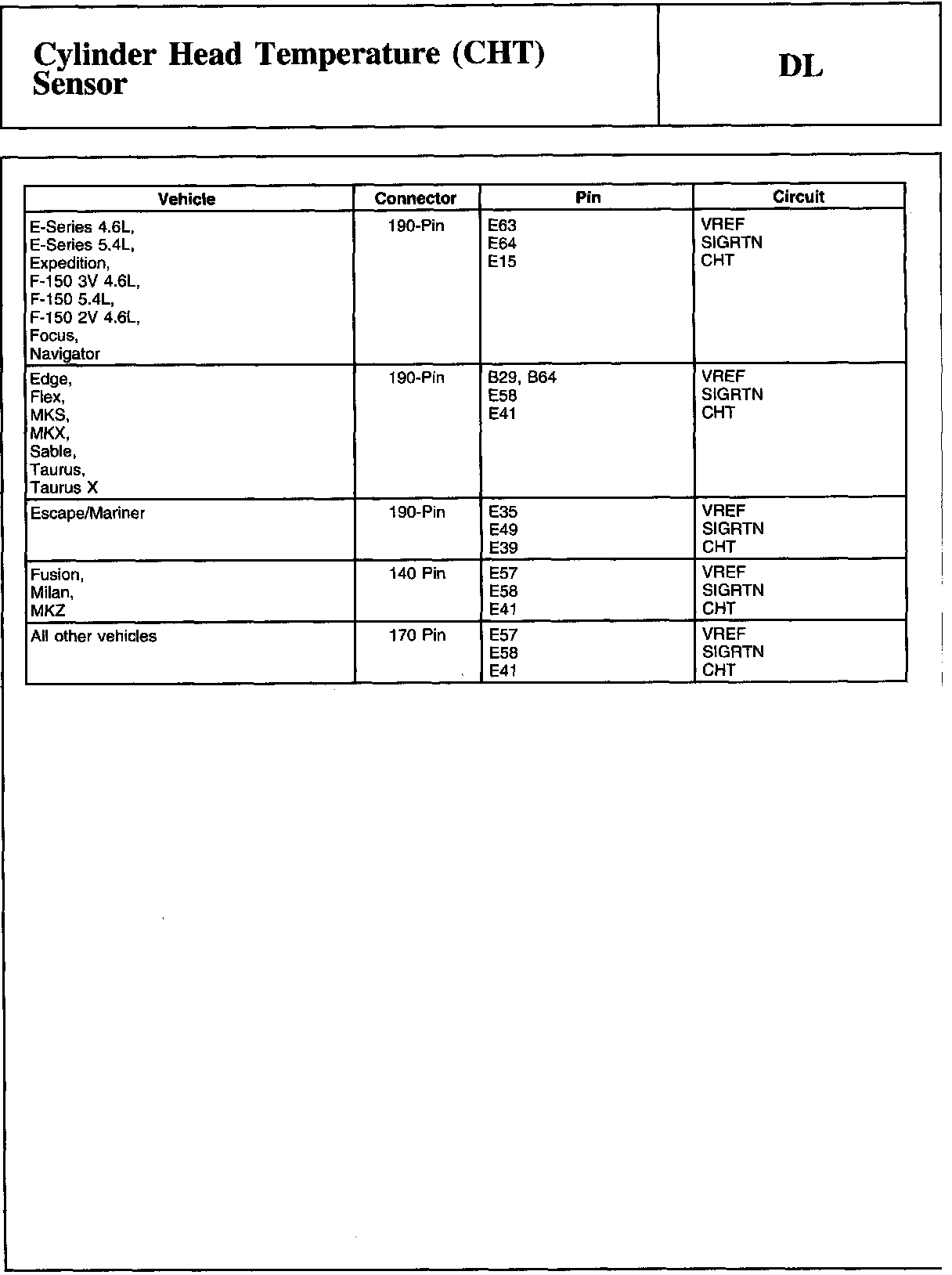

Powertrain Control Module Connector:

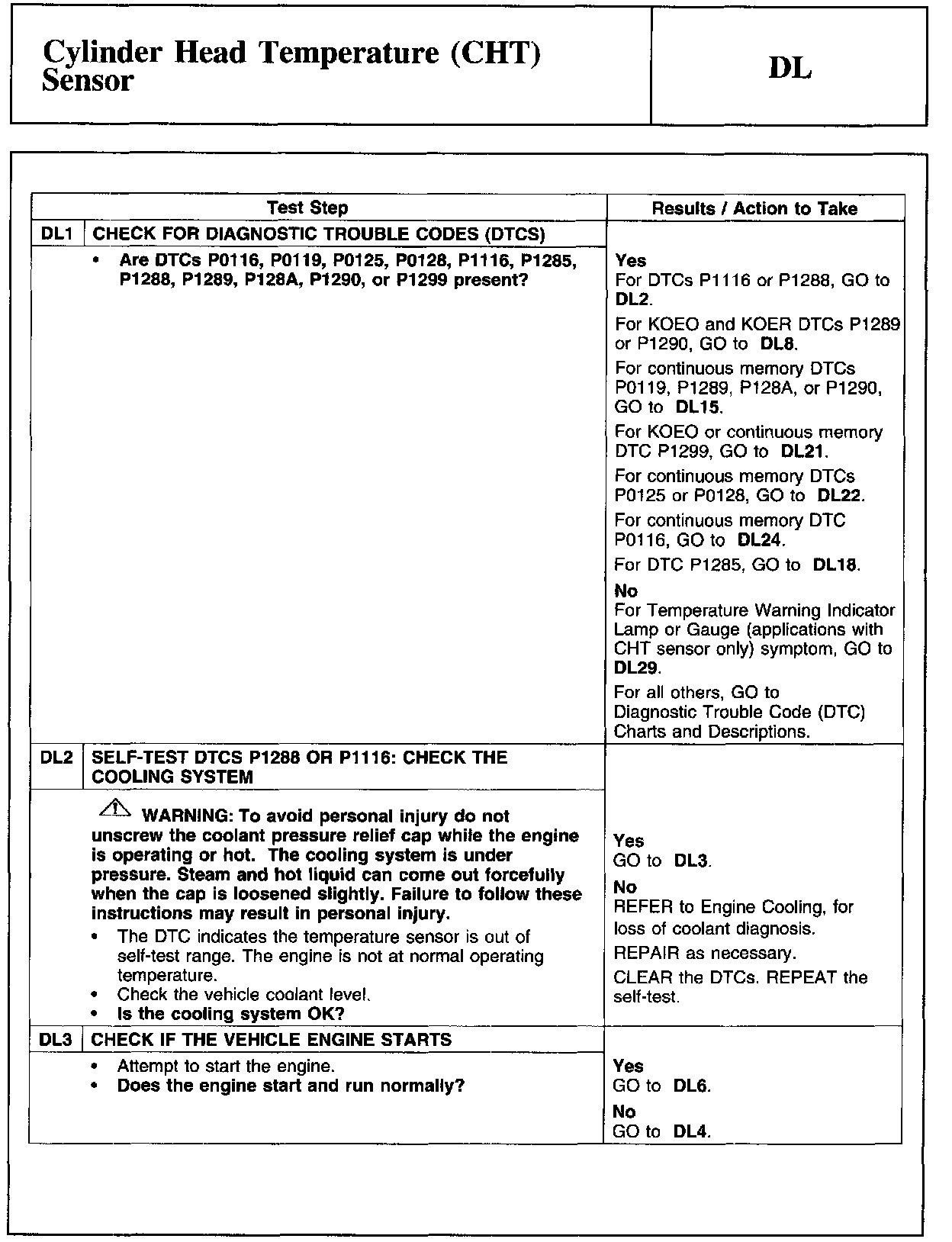

DL1-DL3:

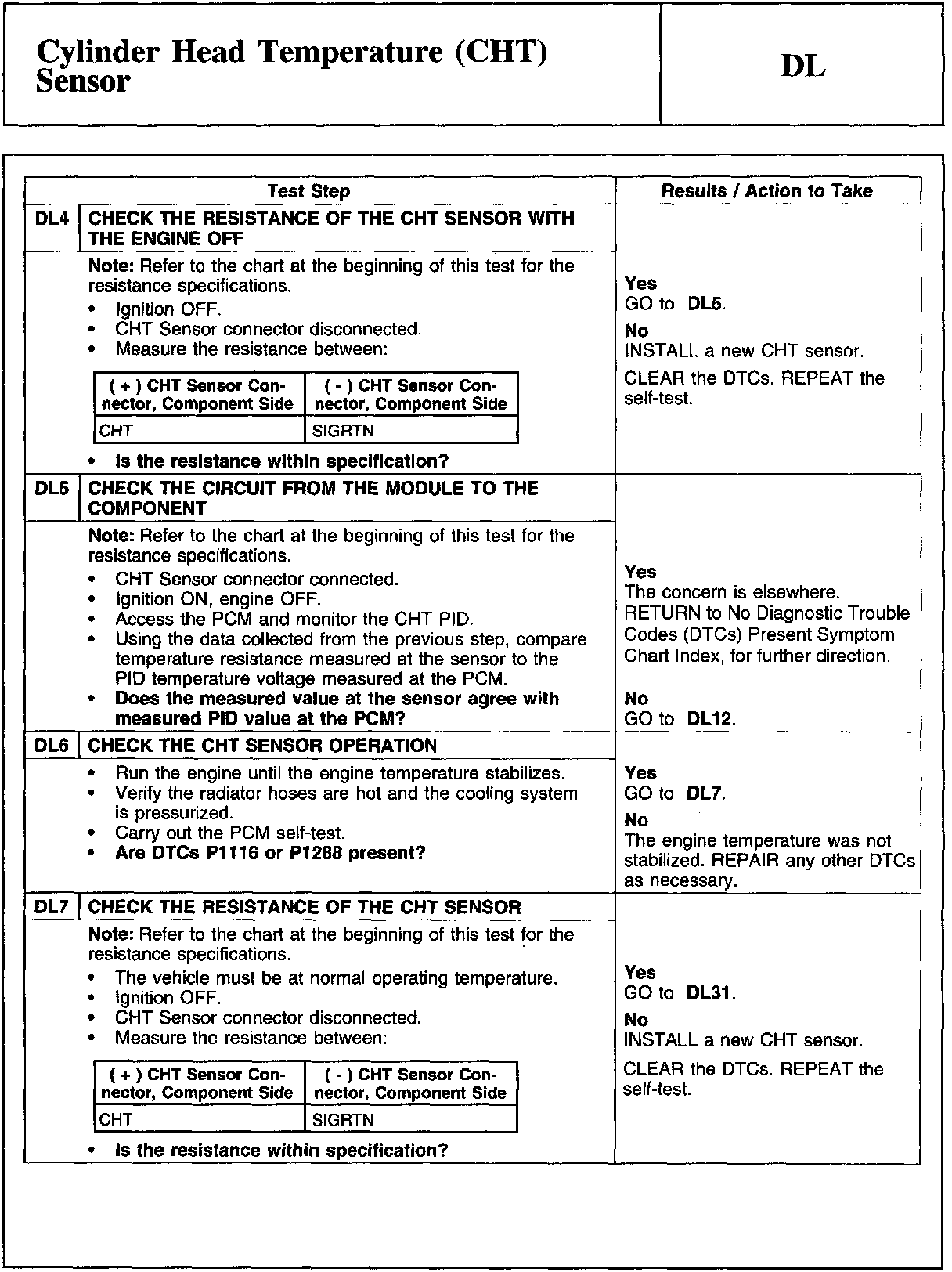

DL4-DL7:

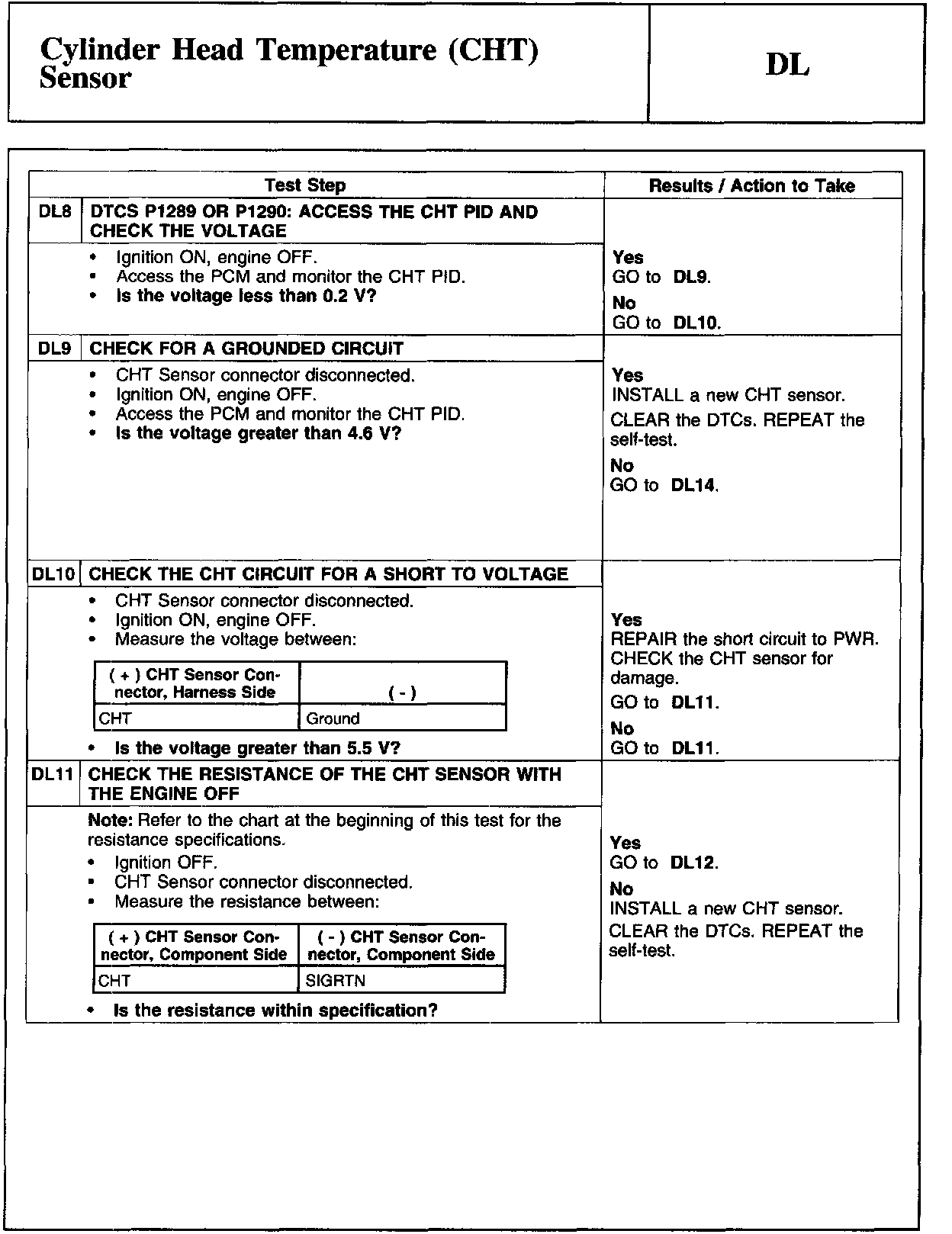

DL8-DL11:

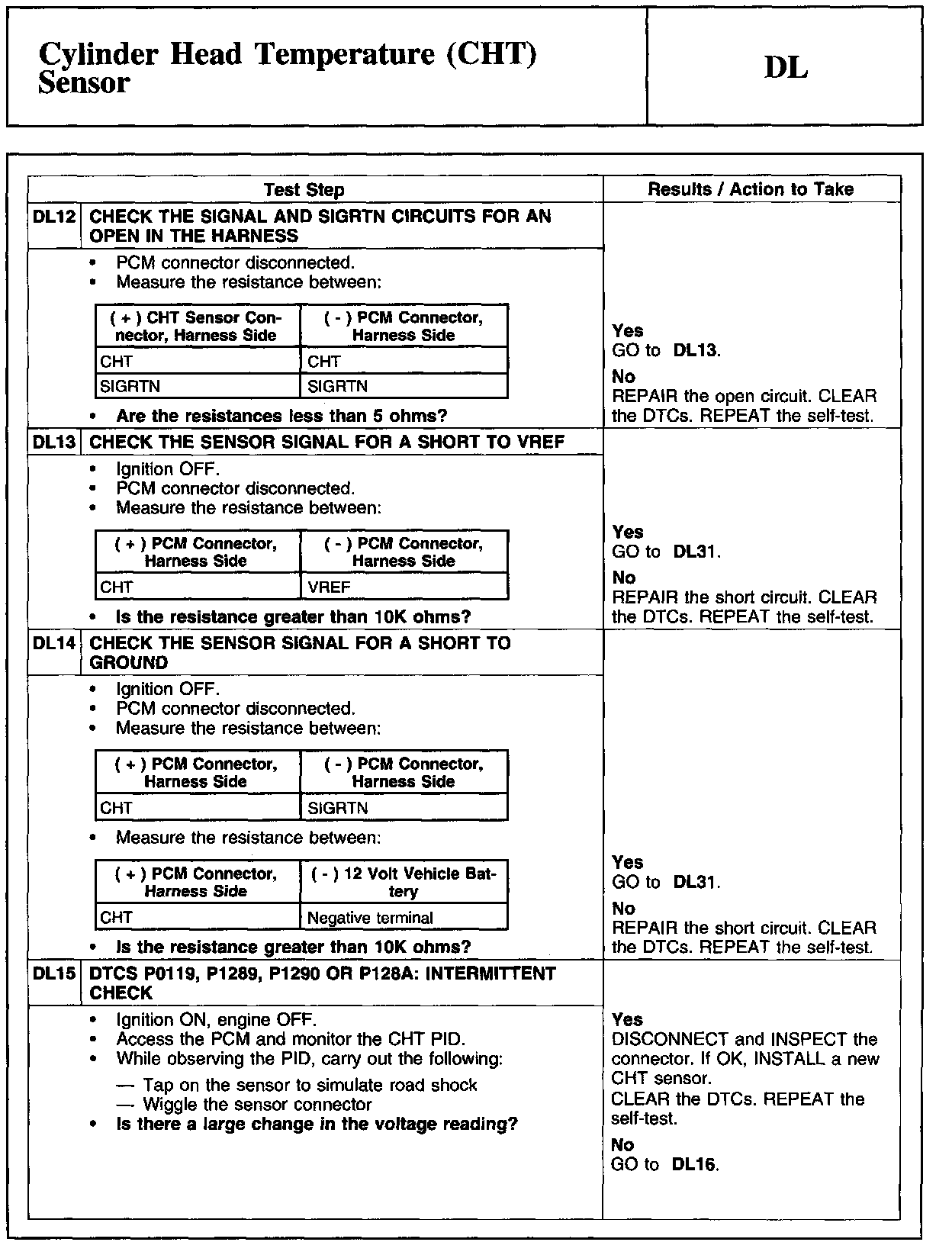

DL12-DL15:

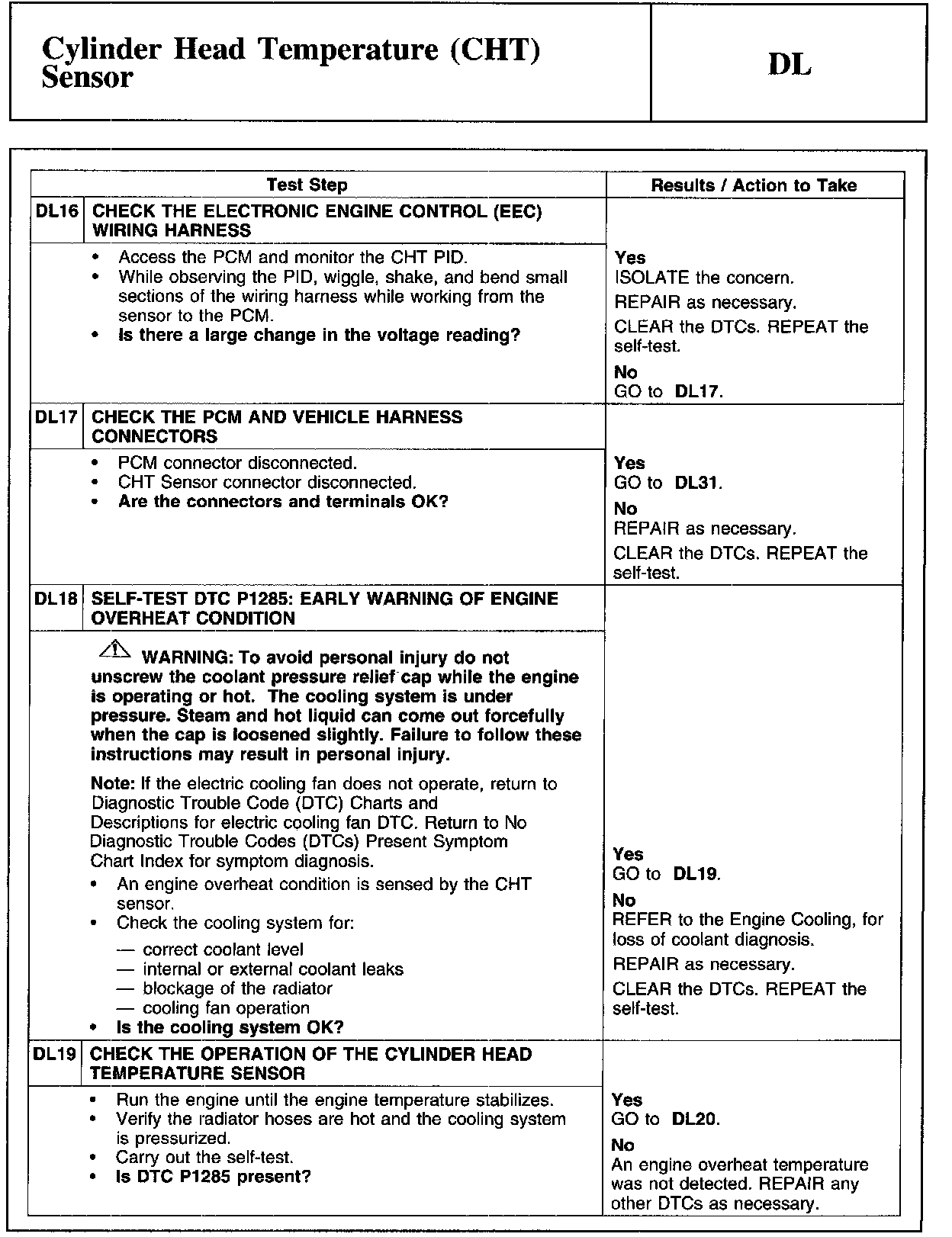

DL16-DL19:

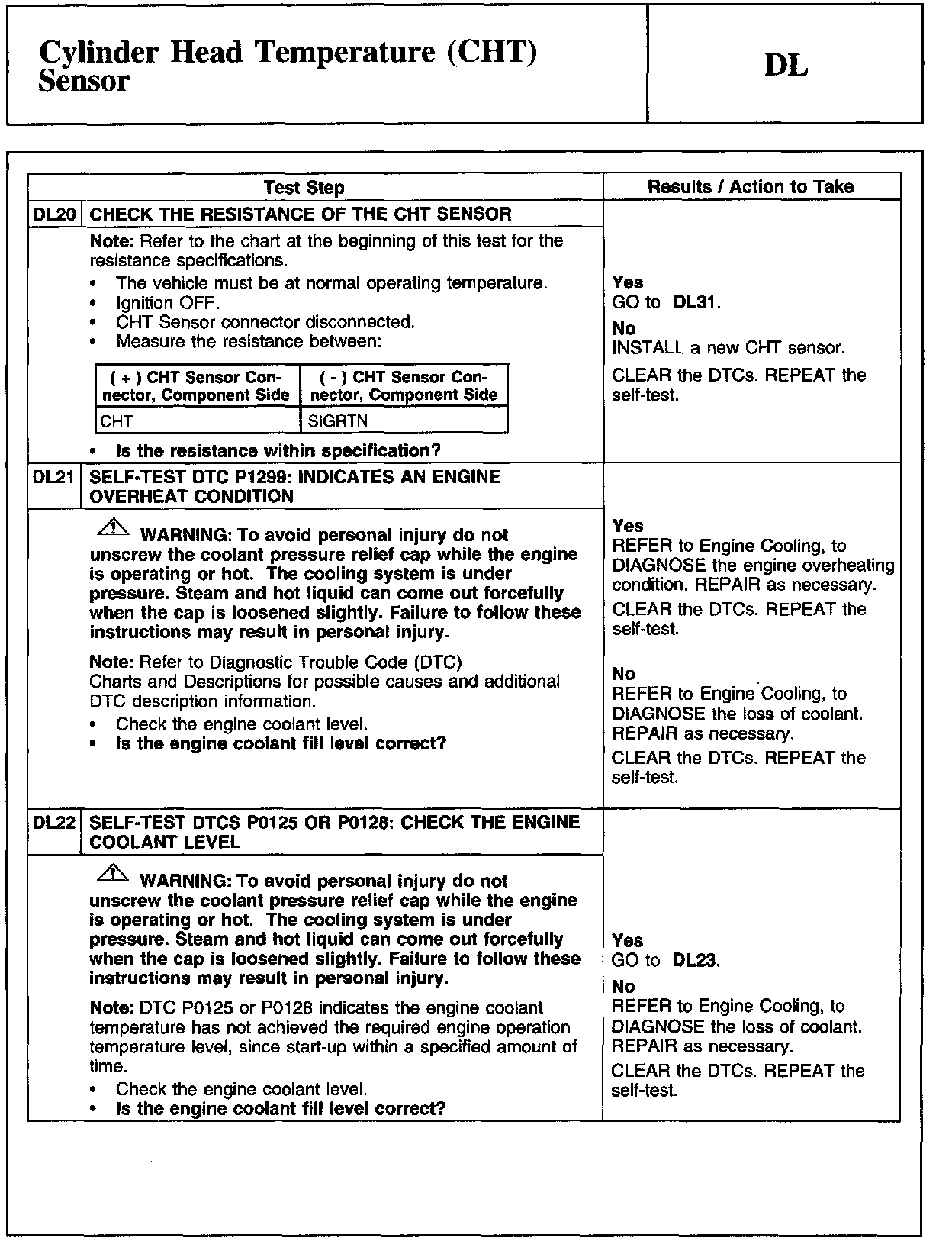

DL20-DL22:

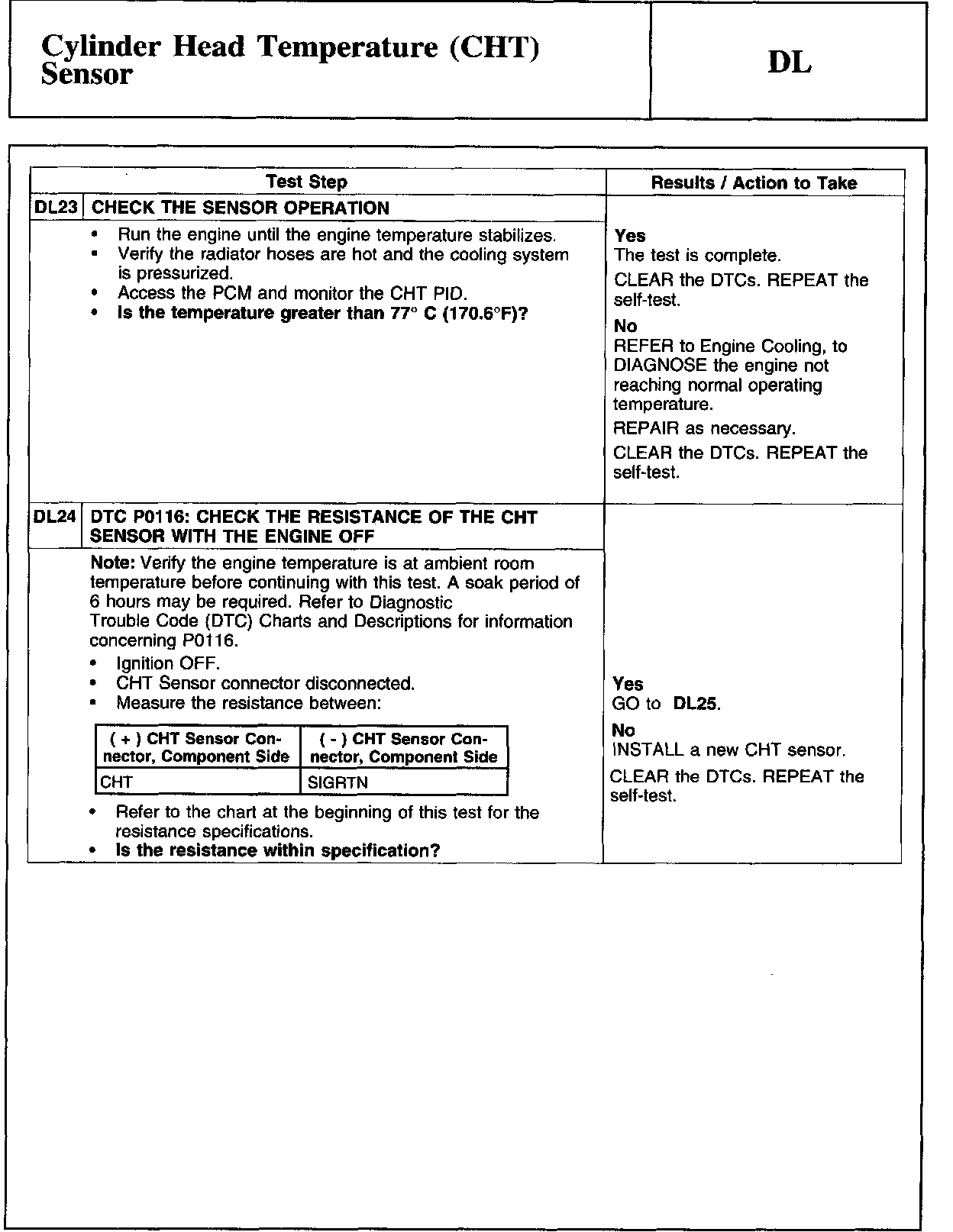

DL23-DL24:

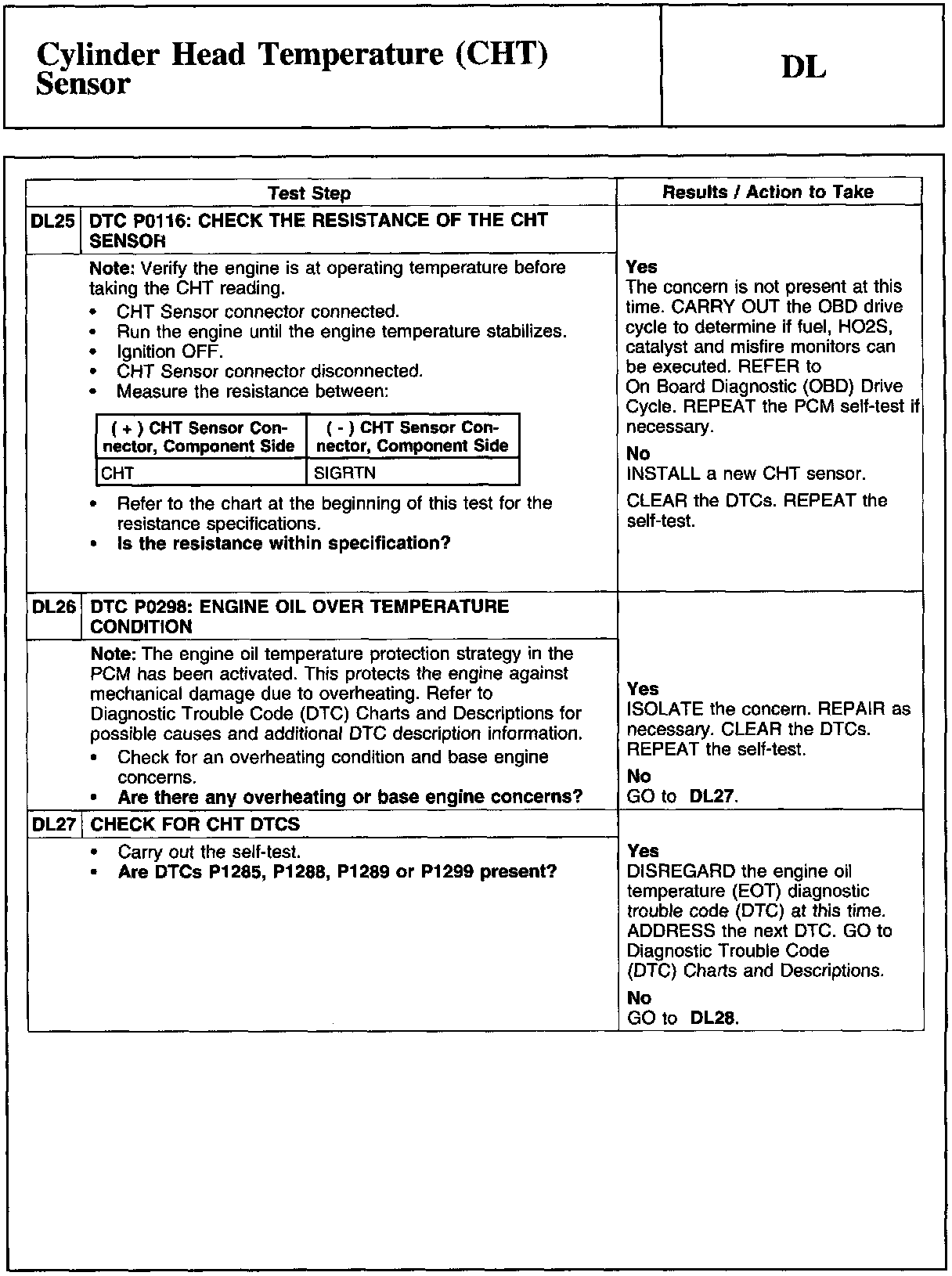

DL25-DL27:

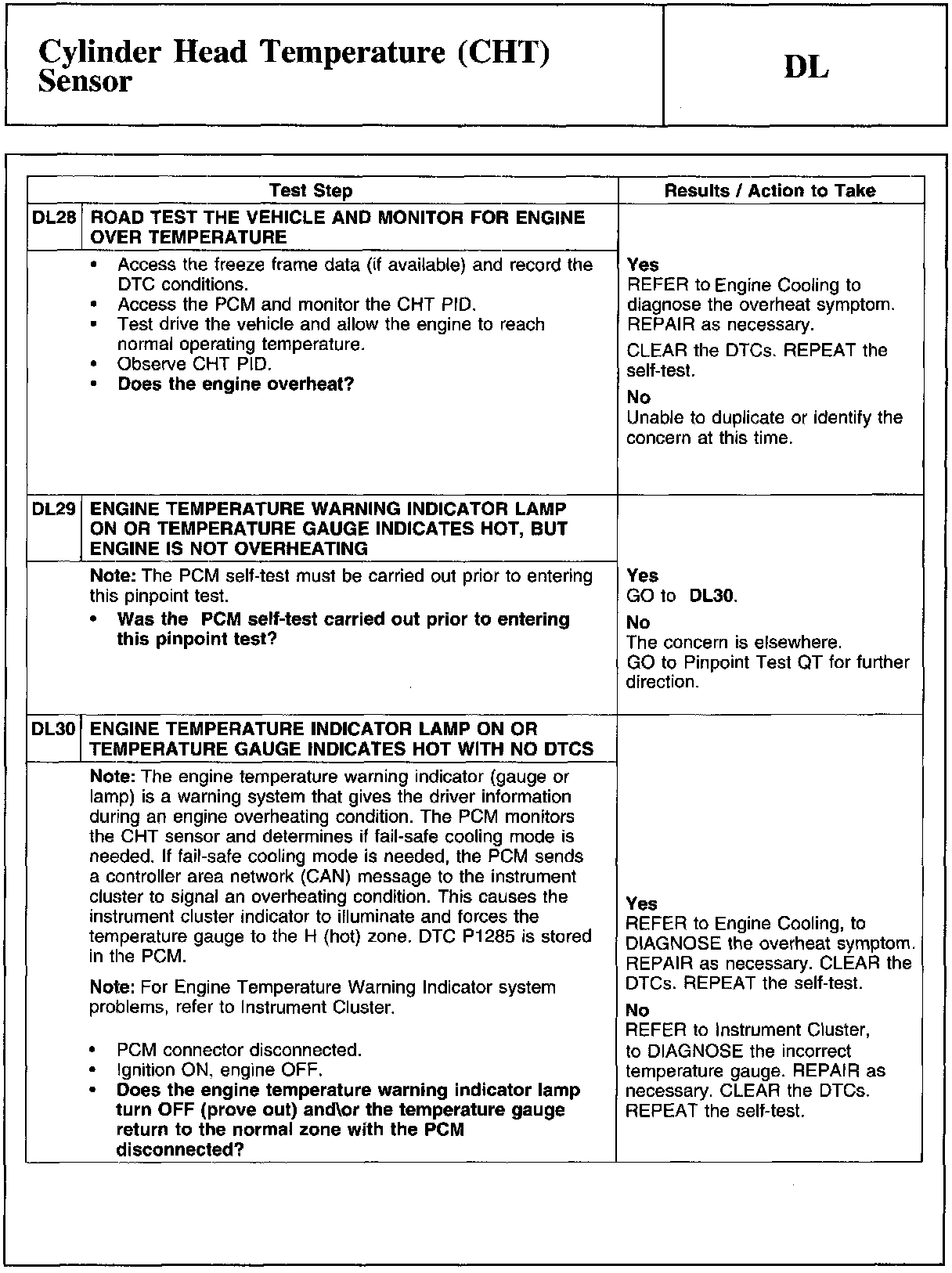

DL28-DL30:

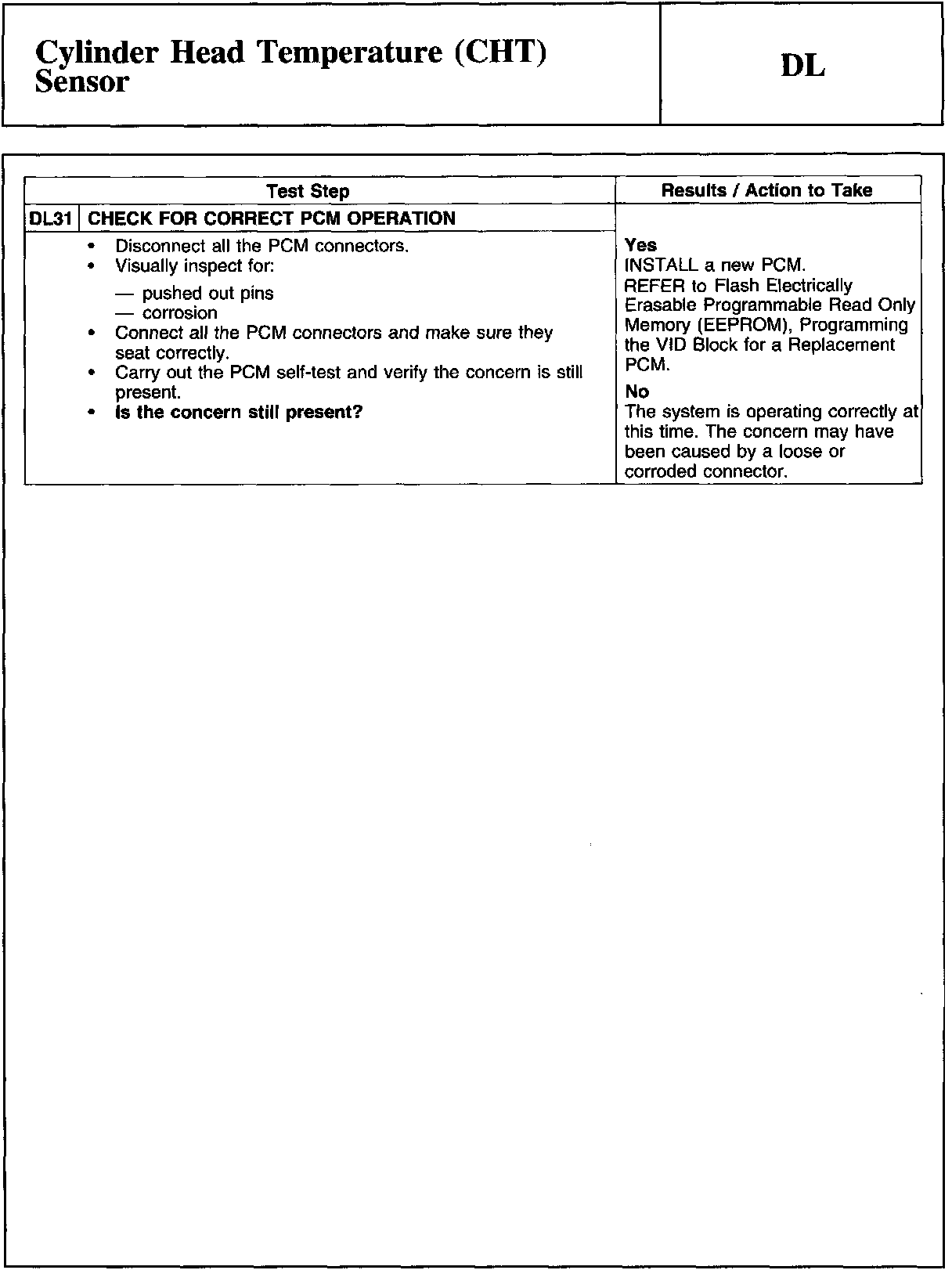

DL31:
