KG - Fuel Injector

PINPOINT TEST KG: FUEL INJECTOR

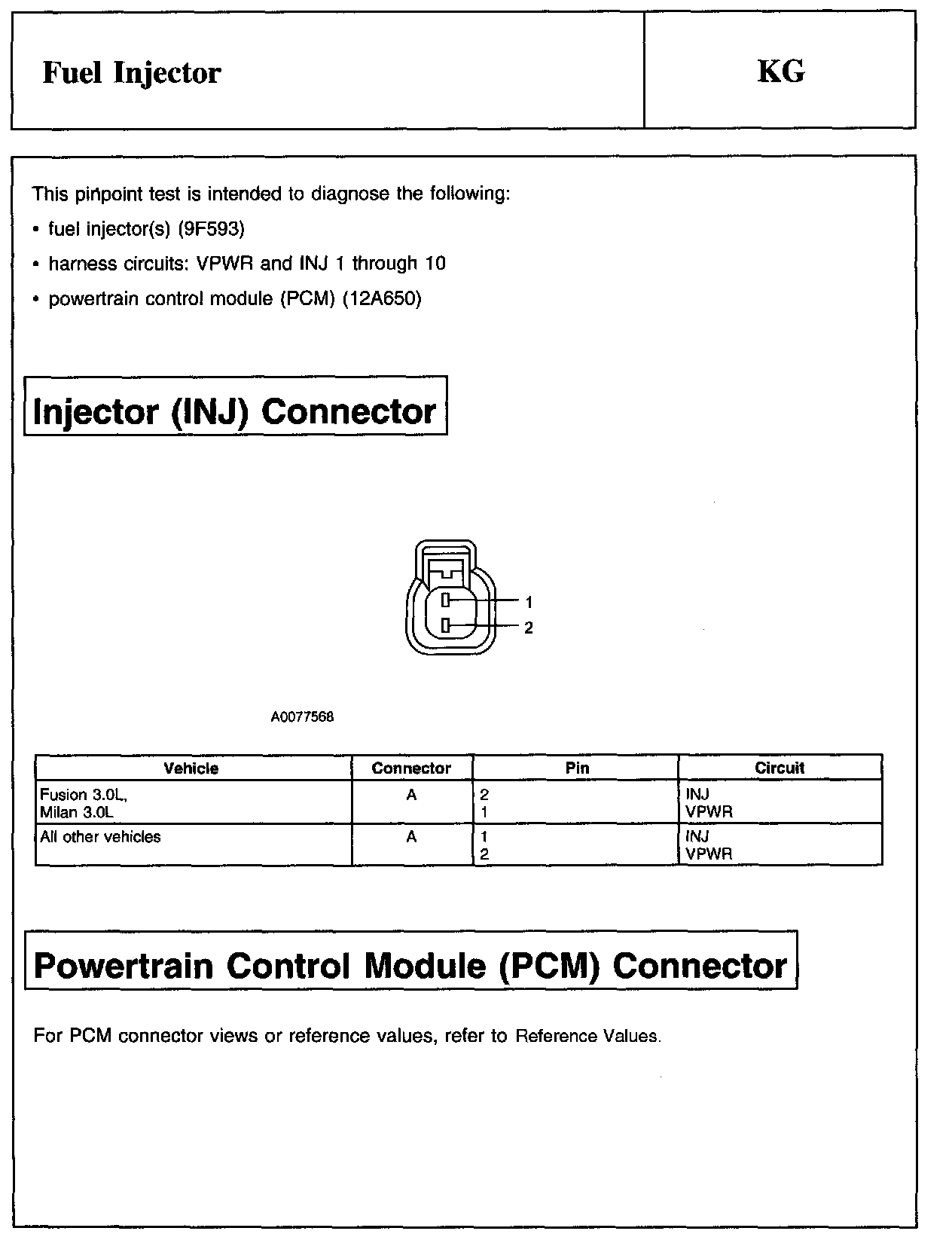

Injector And Powertrain Control Module Connector:

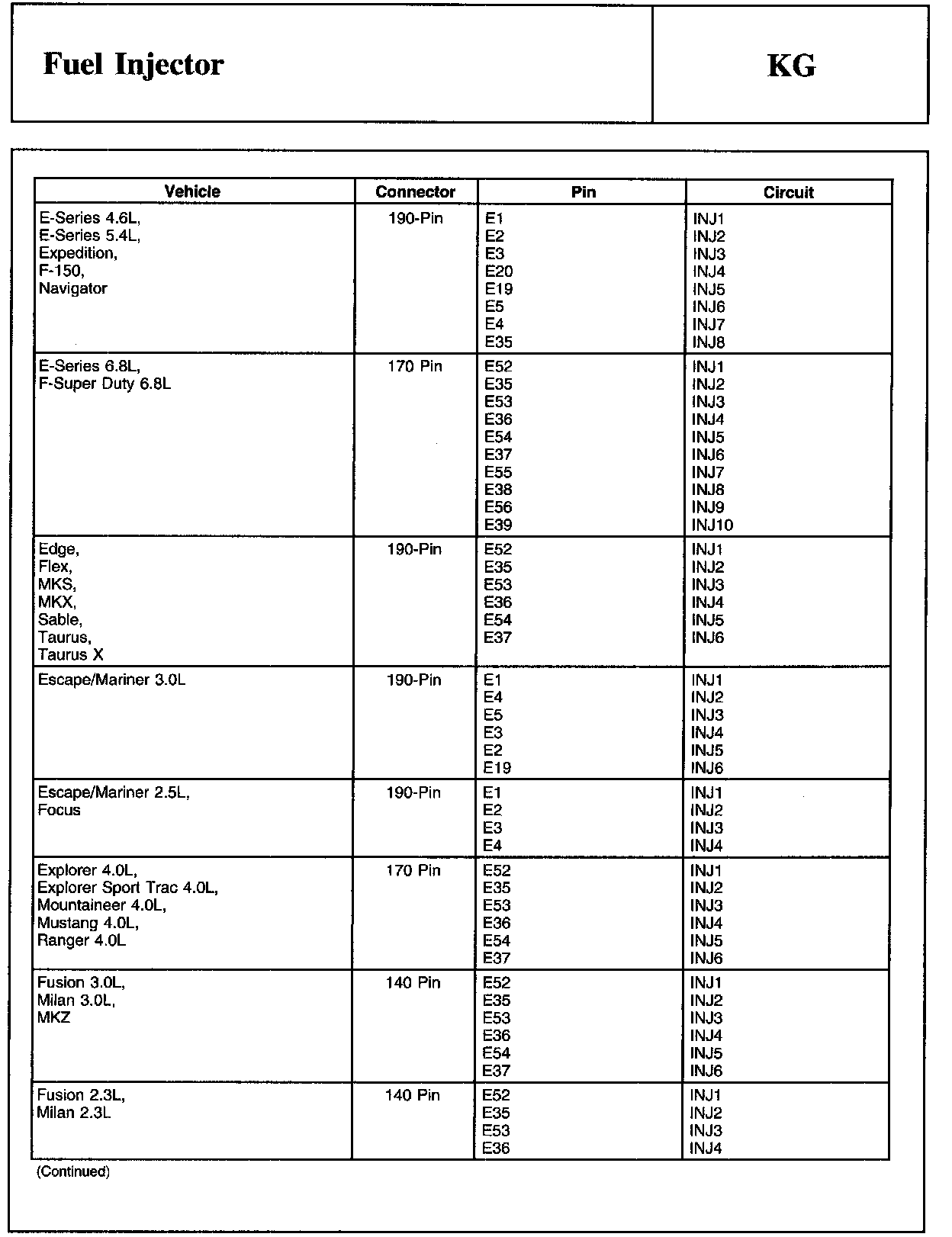

Powertrain Control Module Connector (Continued):

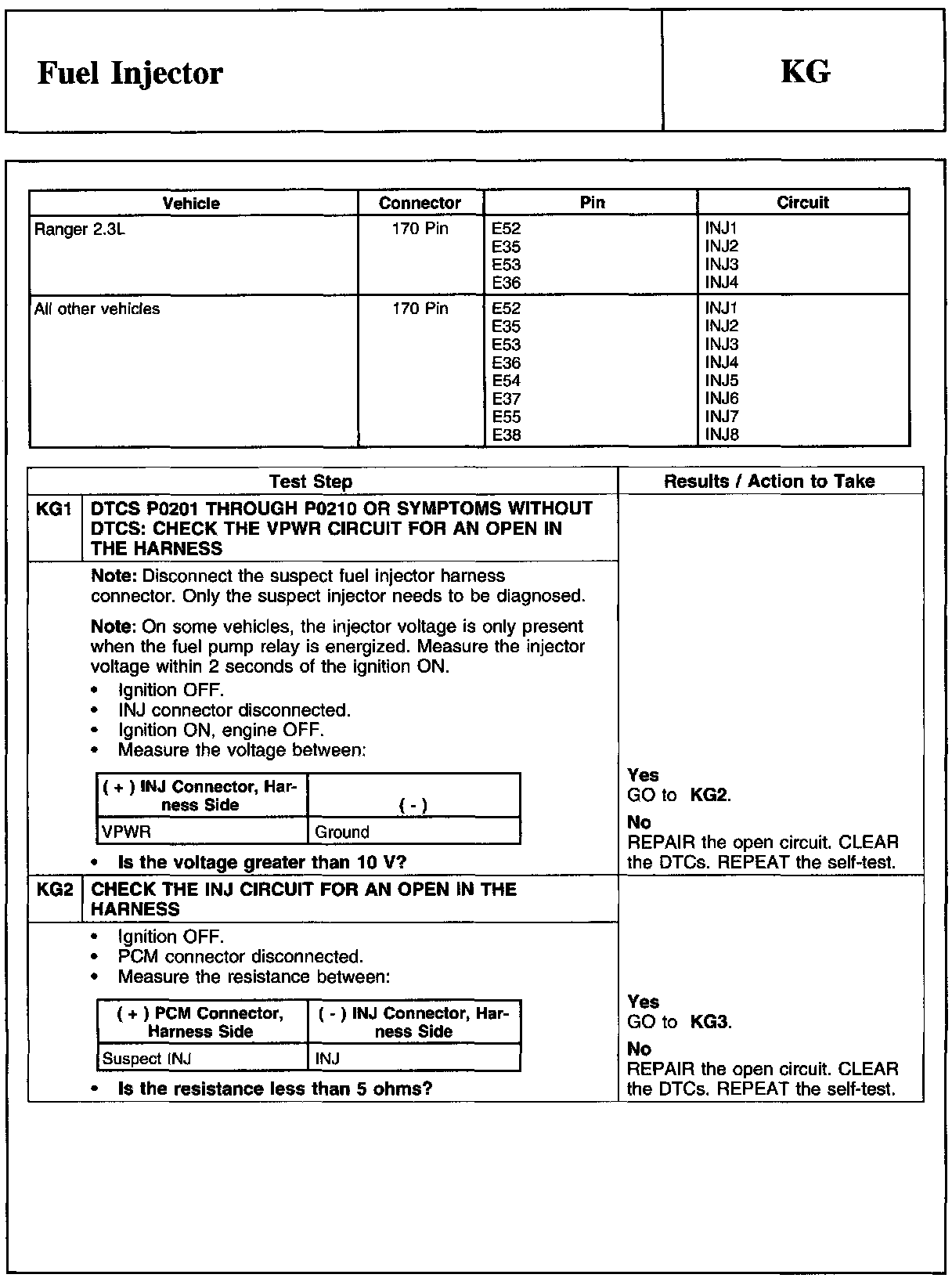

KG1-KG2:

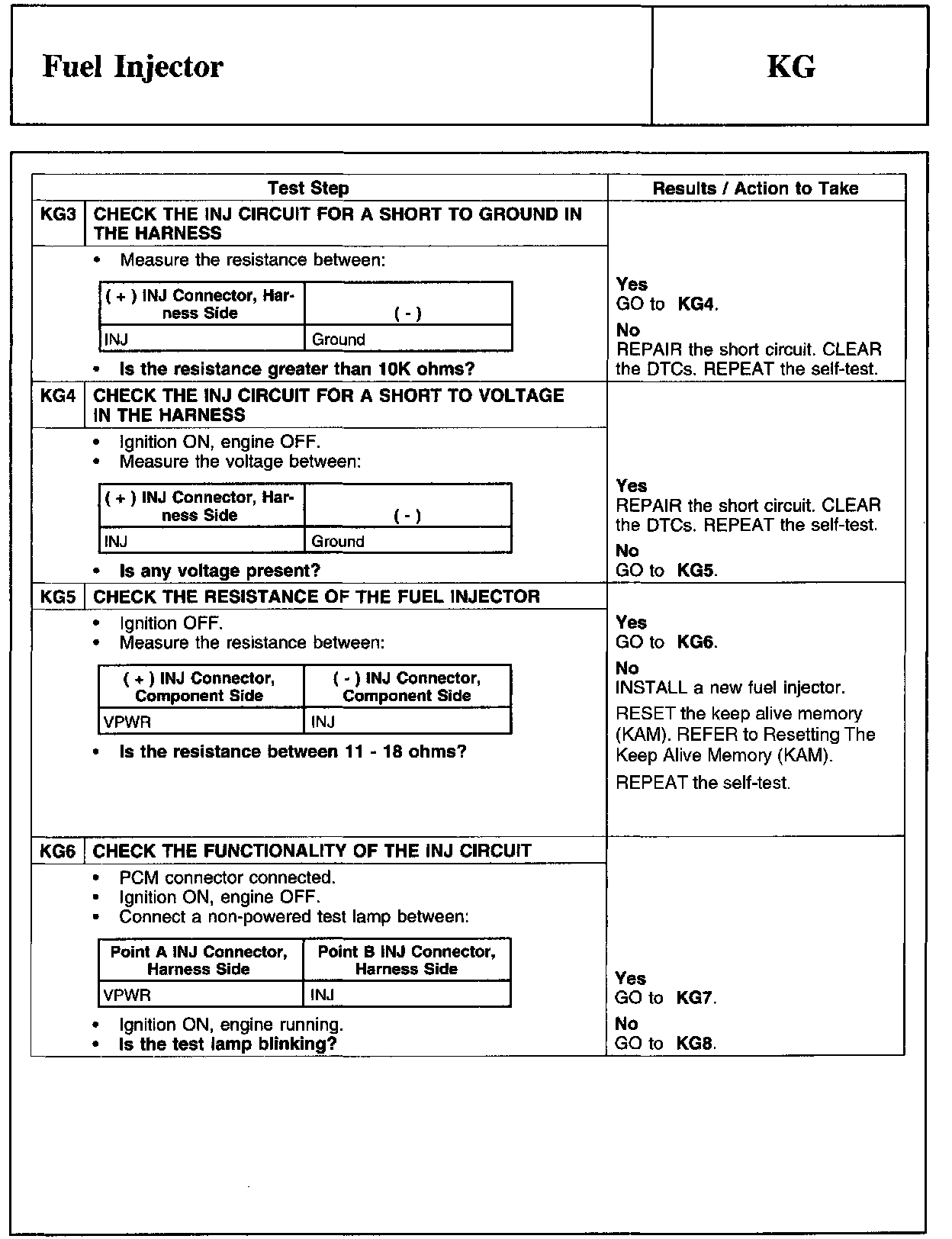

KG3-KG6:

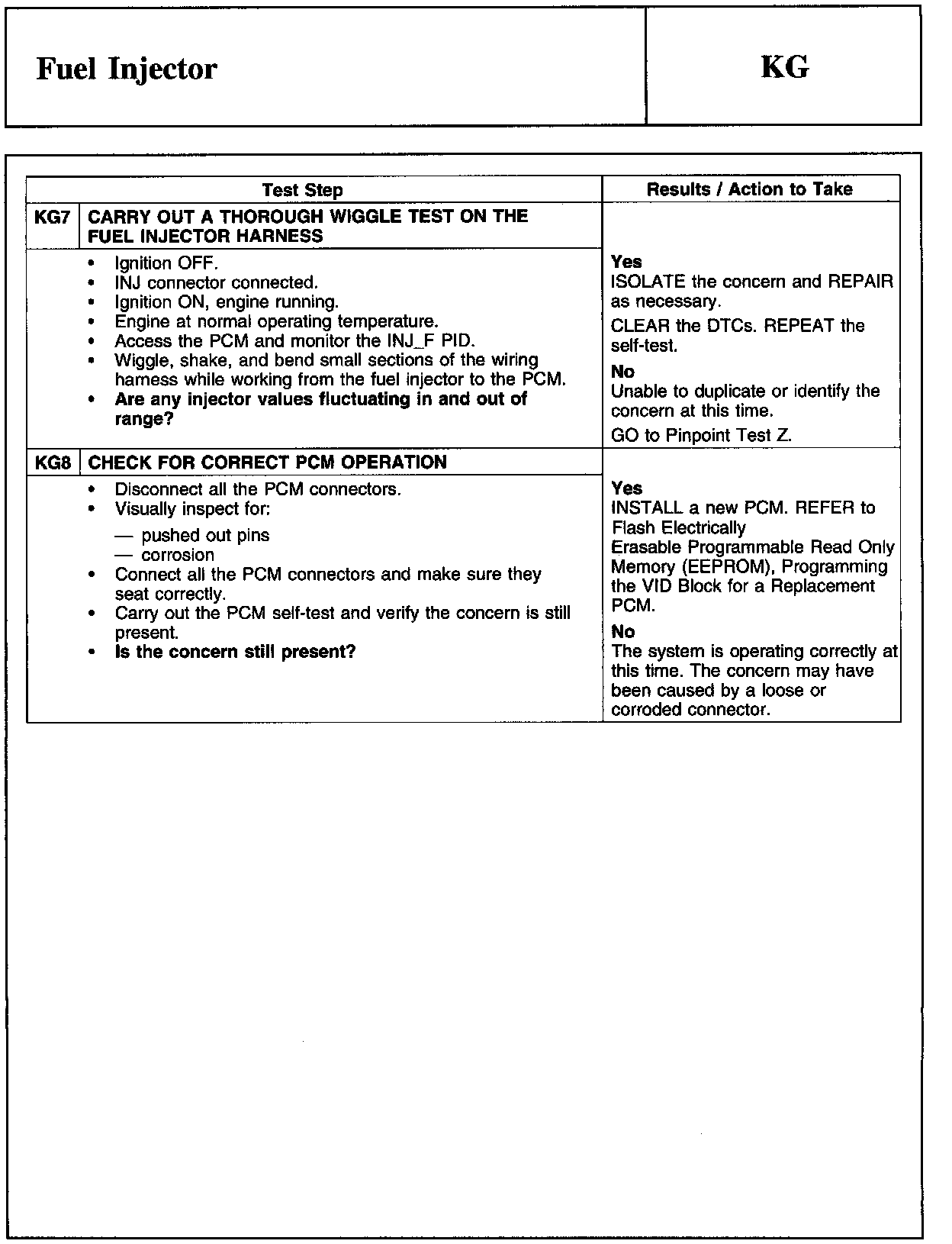

KG7-KG8:
