Intake Air System

IMRCM VOLTAGE VALUES

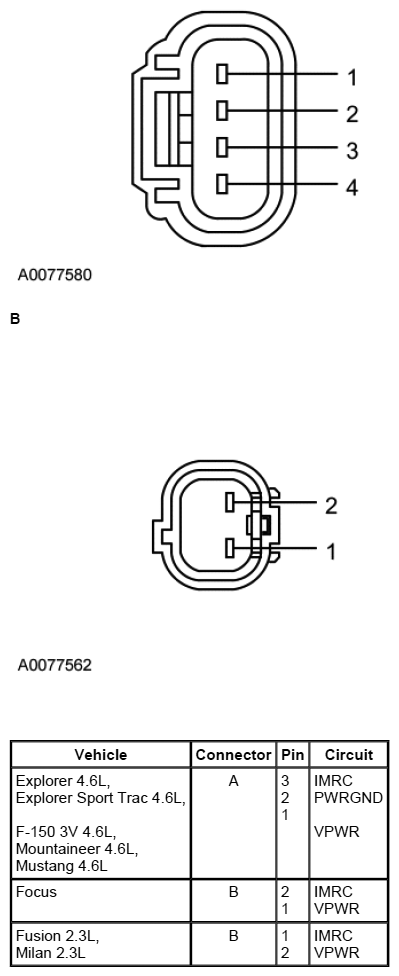

Fig 1: Intake Manifold Runner Control (IMRC) Actuator Connector

Courtesy of FORD MOTOR CO.

For most vehicles the IMRCM is integrated into the IMRC connector.

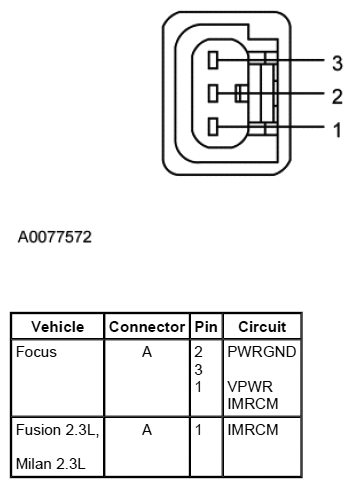

Fig 2: Intake Manifold Runner Control Monitor (IMRCM) Sensor Connector

Courtesy of FORD MOTOR CO.

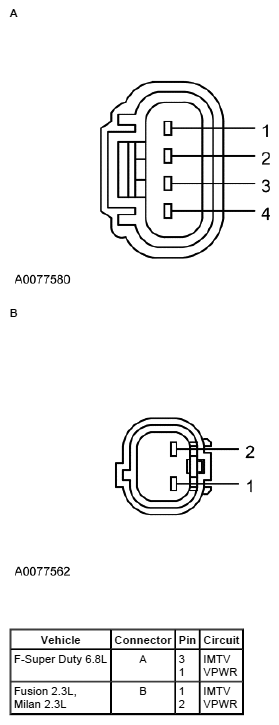

Fig 3: Intake Manifold Runner Control (IMRC) Actuator Connector

Courtesy of FORD MOTOR CO.

For PCM connector views or reference values, refer to REFERENCE VALUES .

POWERTRAIN CONTROL MODULE (PCM) CONNECTOR

Vehicle	Connector	Pin	Circuit
Expedition, Navigator	190-Pin	E64 B22 E43 E50	SIGRTN PWRGND IMRCM IMRC
F-150	190-Pin	E64 B22 E22	SIGRTN PWRGND IMRC
F-Super Duty	170 Pin	E58 E64 B47	SIGRTN IMTV PWRGND
Focus	190-Pin	E64 B69 E25 E22	SIGRTN PWRGND IMRCM IMRC
Fusion, Milan	140 Pin	E58 E64 B67 E43 E50	SIGRTN IMTV PWRGND IMRCM IMRC
Mustang	170 Pin	E58 B47 E50 E50	SIGRTN PWRGND IMRCM IMRC
All other vehicles	170 Pin	E58 B47 E50	SIGRTN PWRGND IMRC
