Steering Gear: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	C-Frame and Screw	211-023 (T74P-3044-A1)

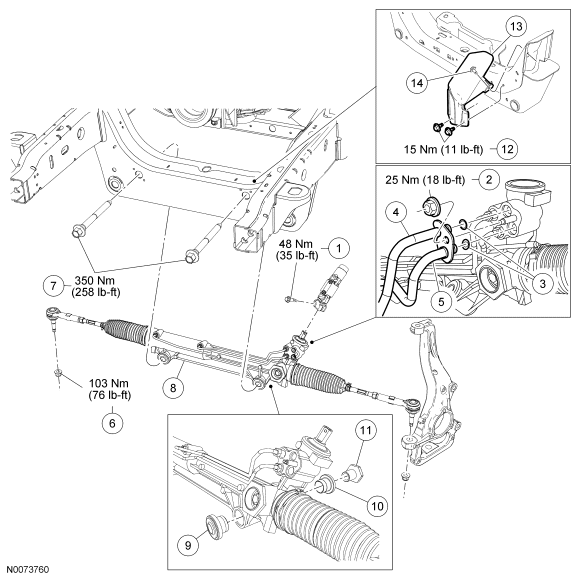

Fig 1: Steering Gear Components With Torque Specifications (1 Of 2)

GF0045214

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W710570	Lower steering column shaft-to-steering gear bolt
2	W520413	Steering line clamp plate nut
3	N803257	O-ring seals (2 required)
4	3F780	Power steering fluid cooler
5	3A719	Power steering pressure line
6	W520215	Tie-rod end nut (2 required)
7	W710466	Steering gear-to-crossmember bolts (2 required)
8	3504	Steering gear
9	3C716A	Forward steering gear bushing (2 required)
10	3C716B	Rearward steering gear bushing (2 required)
11	W710283	Steering gear-to-crossmember nut (2 required)
12	W707079	Oil shield-to-crossmember bolts (2 required)
13	6N634	Oil shield
14	W709571	Oil shield pin-type retainer

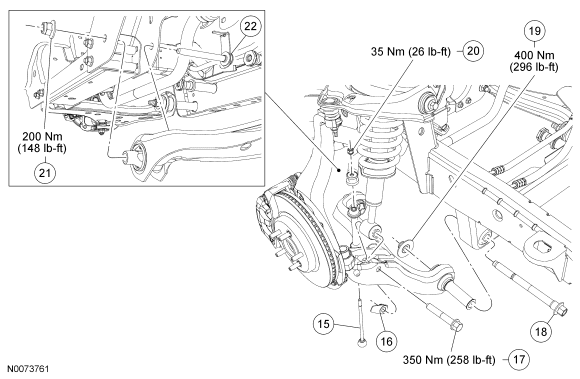

Fig 2: Steering Gear Components With Torque Specifications (2 Of 2)

GF0045215

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
15	5495	Stabilizer bar link bolt
16	W710747	Shock absorber lower flag nut
17	W710775	Shock absorber lower bolt
18	W711505	Lower arm forward bolt
19	W710796	Lower arm forward nut
20	5C491	Stabilizer bar link nut
21	W707254	Lower arm rearward nut
22	W711533	Lower arm rearward flag bolt
