Rear





Disc Brake System - Exploded View

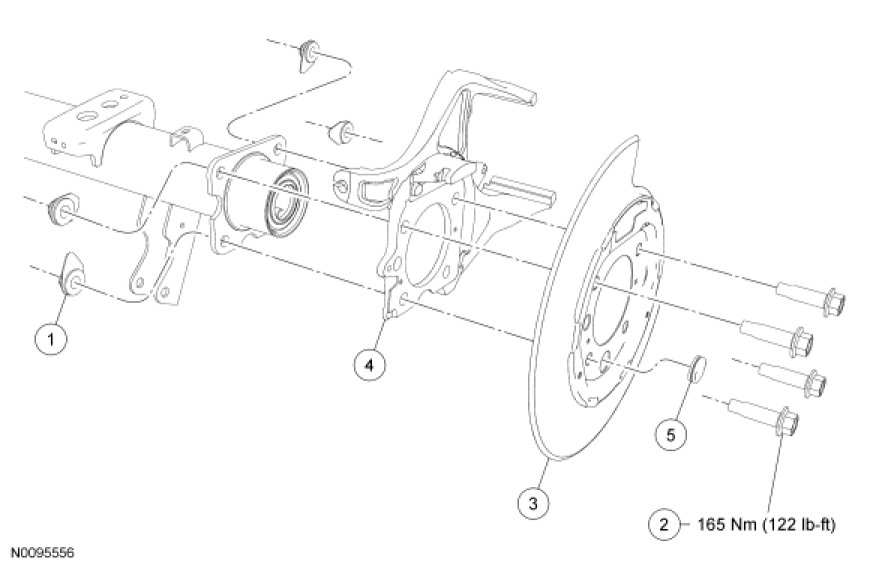

Rear Disc Brakes (view 1 of 3)

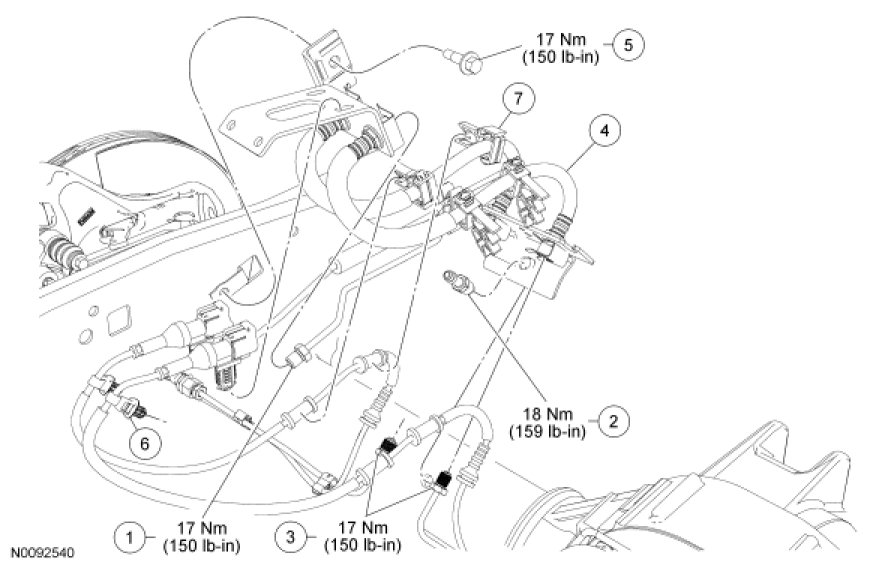

Rear Disc Brakes (view 2 of 3)

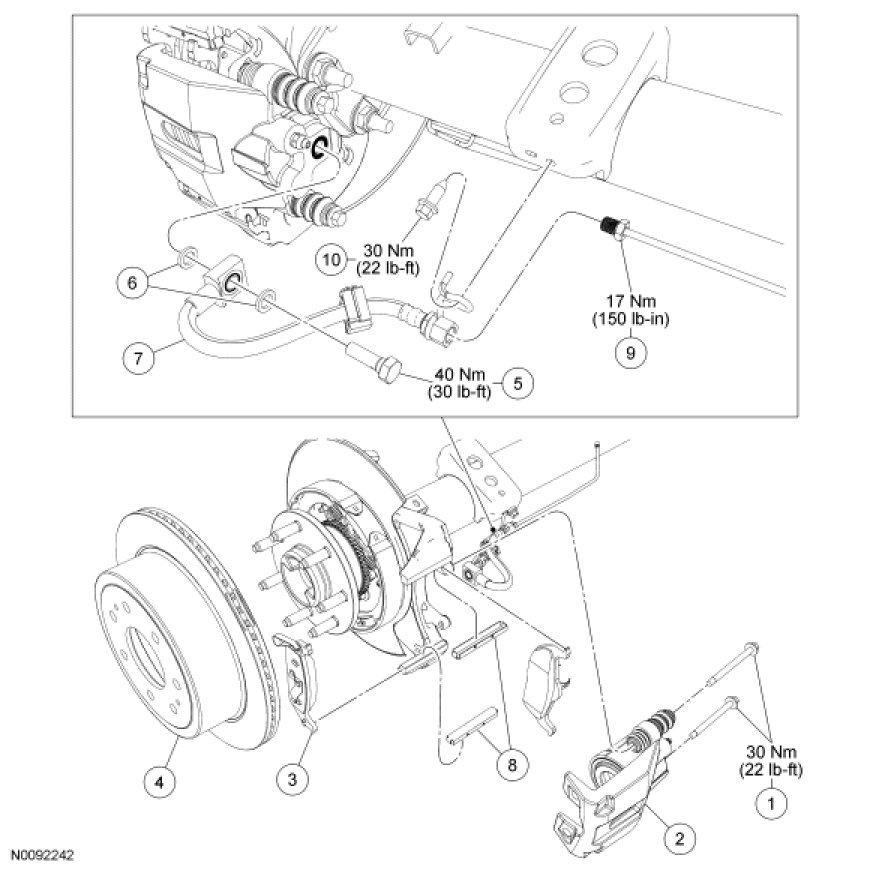

Rear Disc Brakes (view 3 of 3)









1. For additional information, refer to the procedures.
