Typical Diagnostic Reference Values
Typical Diagnostic Reference Values Notes (Part 1):
Typical Diagnostic Reference Values Notes (Part 2):

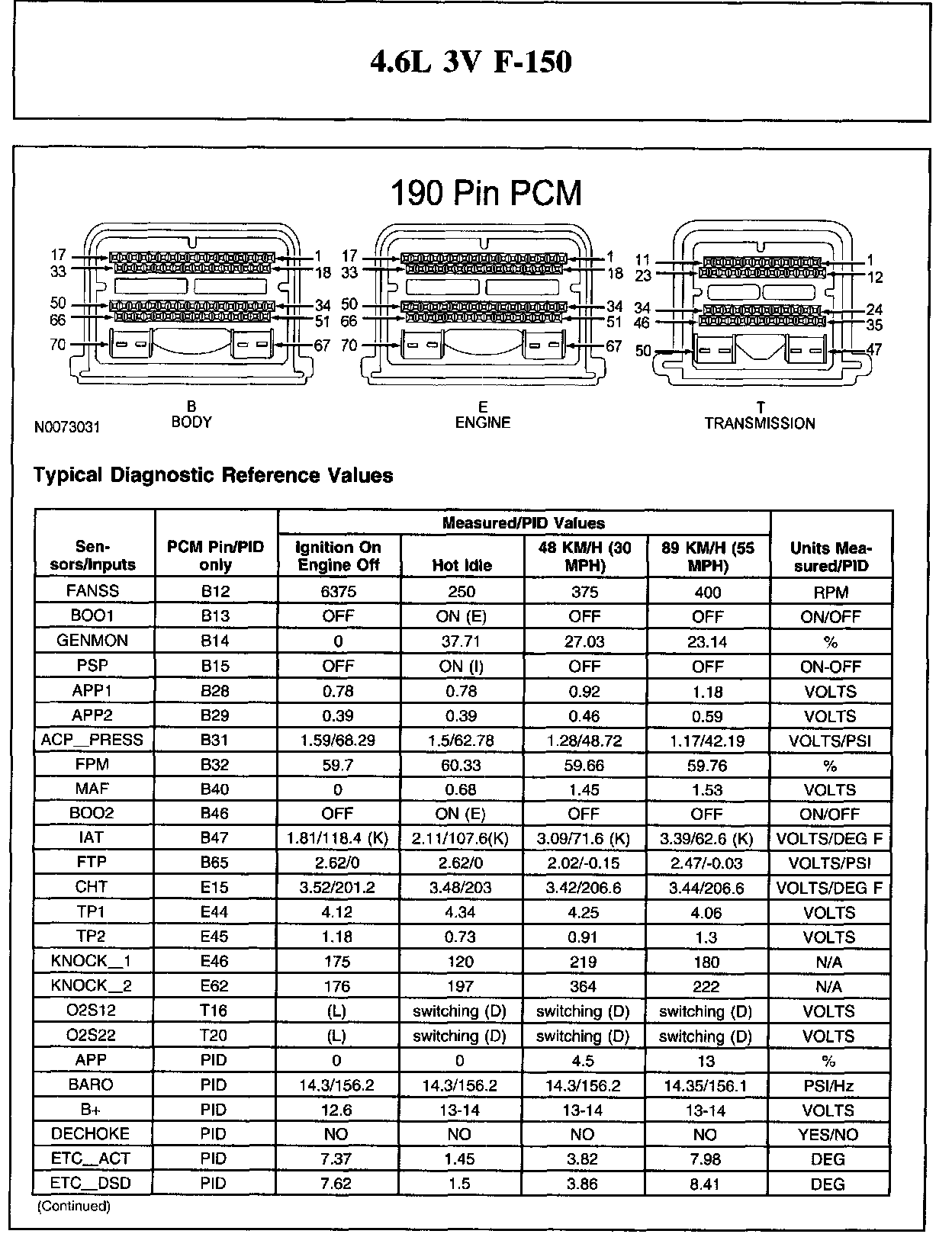

4.6L 3V F-150 (Part 1):

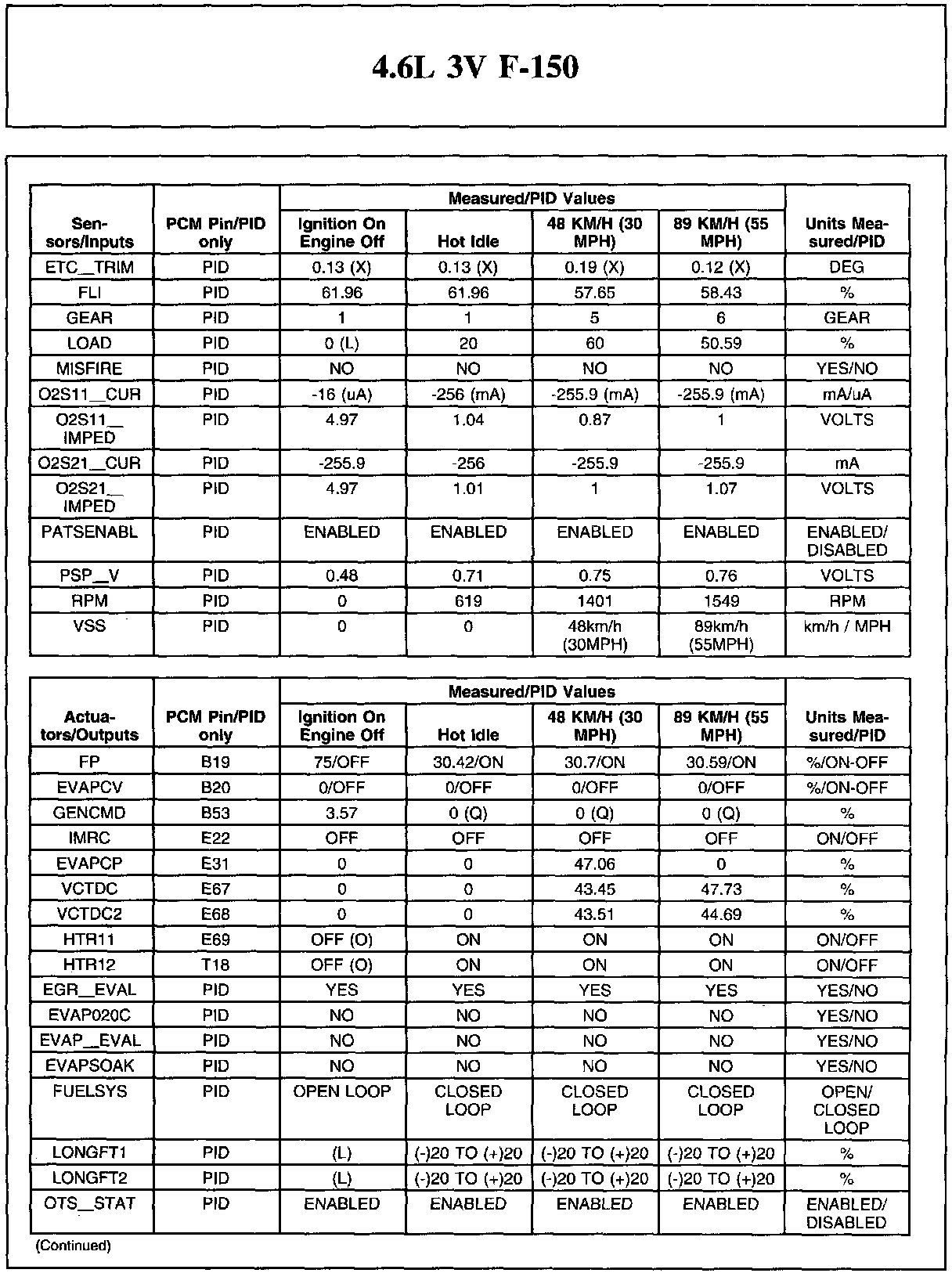

4.6L 3V F-150 (Part 2):

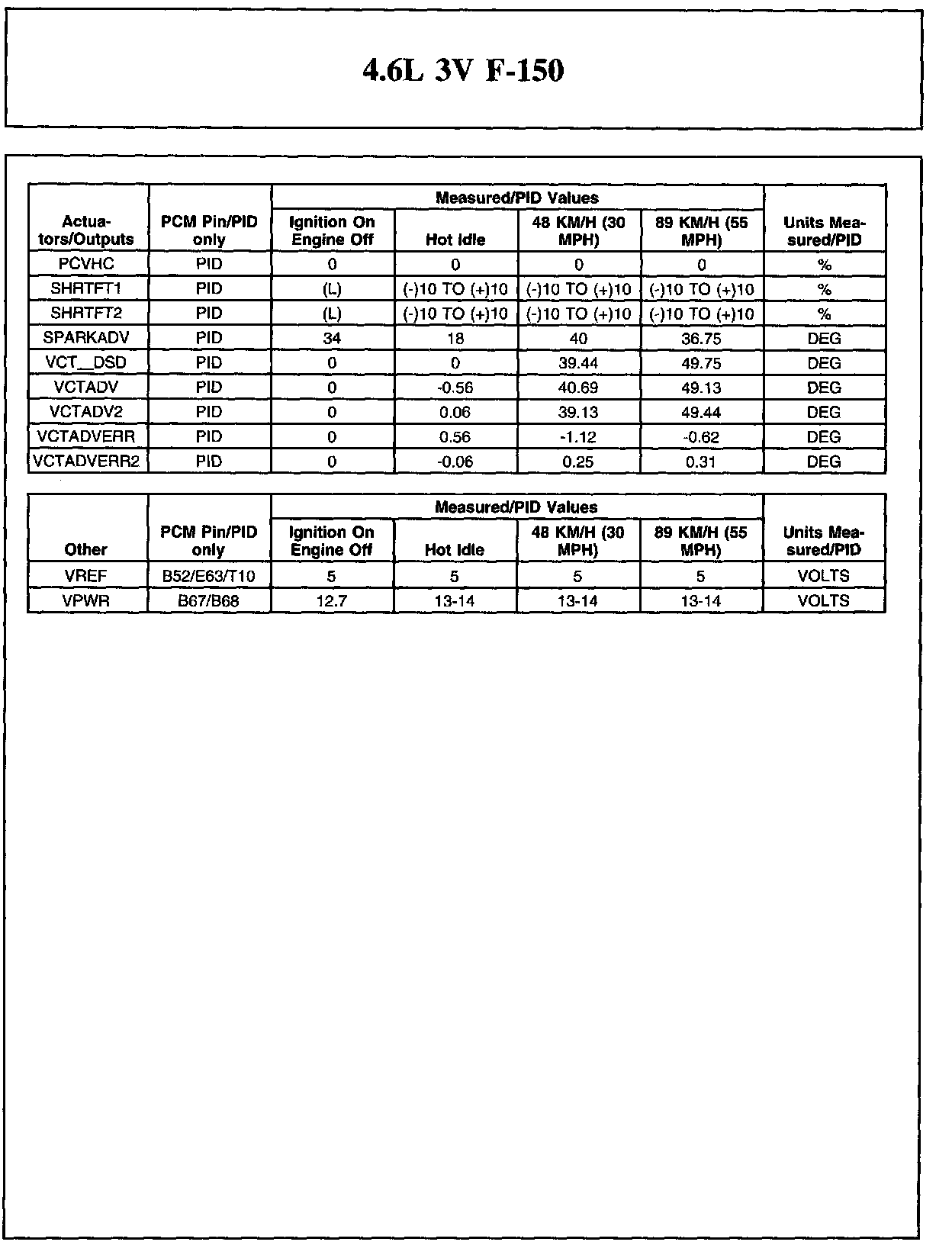

4.6L 3V F-150 (Part 3):
